3-179555-6 | AMP

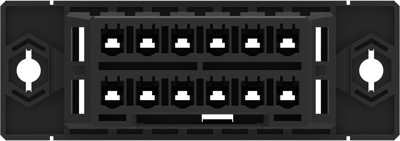

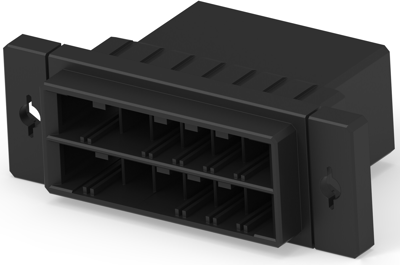

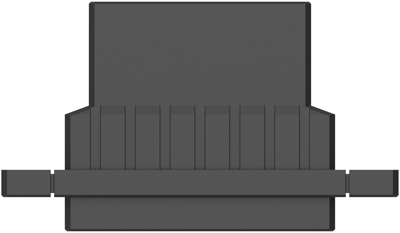

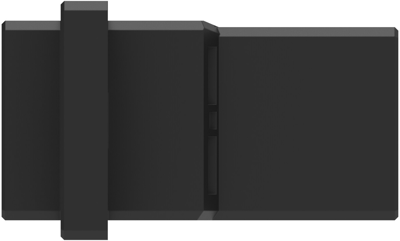

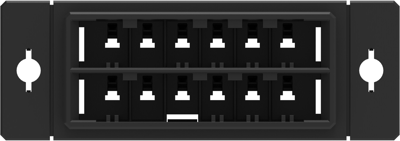

Plug housing, 12 pole, pitch 5.08 mm, straight, black, 3-179555-6
Unit Price (€ / pc.)
4.0222 € *
Available in 5 Days: 640 pcs. - if ordered today
Total Price:
4.02 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0222 €
10 pcs.
3.7366 €
25 pcs.
3.4867 €
50 pcs.
3.1773 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 3-179555-6, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 12 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Tab
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 12
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 5.08 mm
- Row-to-Row Spacing: 7.62 mm [0.299 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Pin number | 12 pole | |
| Connection | crimp connection | |
| Rated current | 10 A | |
| Colour | black | |
| Grid | 5.08 mm | |
| Number of rows | 2 | |
| Rated voltage | 600 V | |
| Version | plug housing | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
