3-176976-6 | AMP

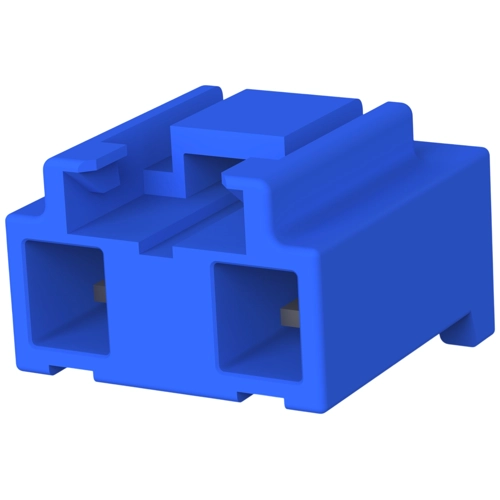

Pin header, 3 pole, pitch 7.92 mm, straight, blue, 3-176976-6

Order No.: 34P6092
EAN: 4099889910285
MPN:
3-176976-6

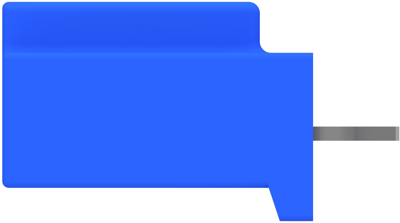

3-176976-6 AMP PCB Connection Systems Image 1

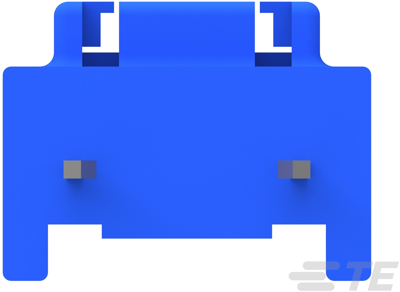

3-176976-6 AMP PCB Connection Systems Image 2

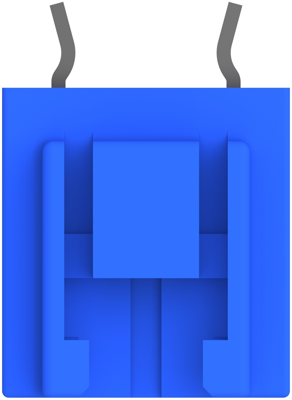

3-176976-6 AMP PCB Connection Systems Image 3

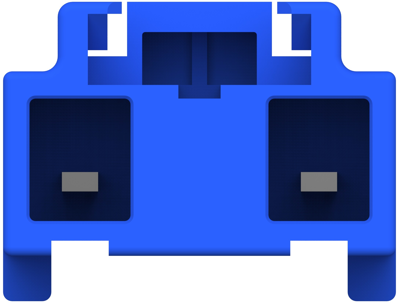

3-176976-6 AMP PCB Connection Systems Image 4

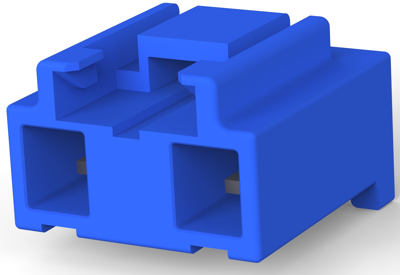

3-176976-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2451 € *
Available in 5 Days: 10,915 pcs. - if ordered today
Total Price:
1.23 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2451 €
10 pcs.
0.2273 €
25 pcs.
0.2118 €
50 pcs.
0.1916 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-176976-6, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 3 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Tab
  • Housing Material: Nylon 6/6 GF
  • Housing Color: blue
  • Orientation: straight
  • Number of positions: 3
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Rated current: 11 A
  • Centerline (Pitch): 7.92 mm
  • Sealable: No
Technical specifications
Filter Property Value
Grid 7.92 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 11 A
Rated voltage 300 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour blue
Pin number 3 pole
Connection solder pin
Logistics
Property Value
Country of origin US
Customs tariff number 85366910
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
