3-176976-4 | AMP

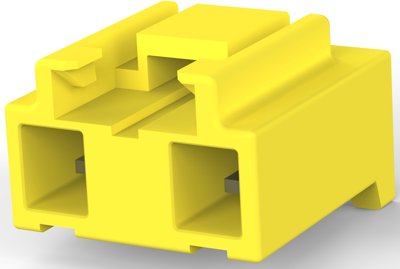

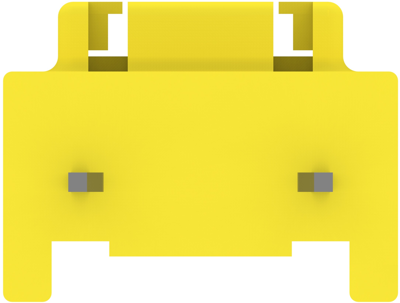

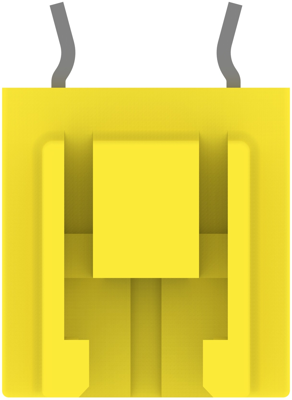

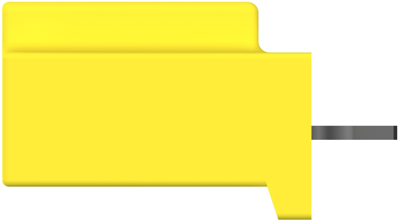

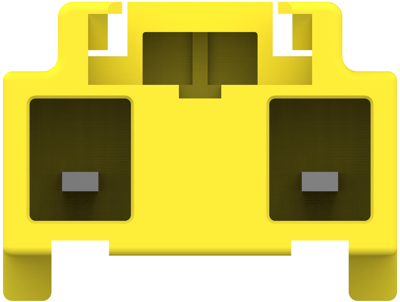

Pin header, 3 pole, pitch 7.92 mm, straight, yellow, 3-176976-4
Unit Price (€ / pc.)
0.2630 € *
Standard delivery time from the manufacturer is: 21 Weeks
Rectangular connector, 3-176976-4, AMP
Rectangular power connector, Header, Plug, Wire-to-Board, 3 Position, 7.92 mm Centerline, Printed circuit board.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.92 mm | |
| Pin number | 3 pole | |
| Colour | yellow | |
| Connection plating | tin-plated | |
| Contact type | tab | |
| Rated current | 11 A | |
| Version | pin header | |
| Connection | solder connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 300 V | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
