3-1761608-5 | AMP

Pin header, 50 pole, pitch 2.54 mm, straight, blue, 3-1761608-5

Order No.: 36P5235
EAN: 4099889942071
MPN:
3-1761608-5
Series: AMP-LATCH

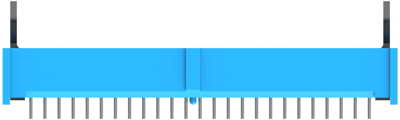

3-1761608-5 AMP PCB Connection Systems Image 1

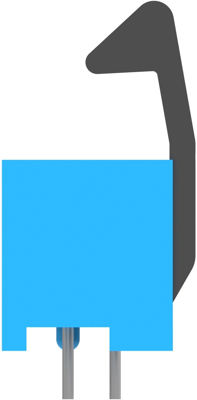

3-1761608-5 AMP PCB Connection Systems Image 2

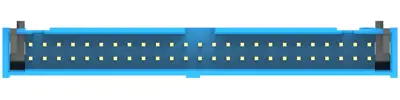

3-1761608-5 AMP PCB Connection Systems Image 3

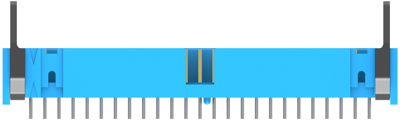

3-1761608-5 AMP PCB Connection Systems Image 4

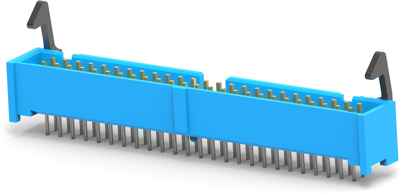

3-1761608-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
13.8278 € *
Available in 5 Days: 695 pcs. - if ordered today
Total Price:
13.83 € *
Price list
Quantity
Price per unit*
1 pcs.
13.8278 €
10 pcs.
12.8401 €
25 pcs.
11.9833 €
50 pcs.
10.8885 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-1761608-5, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 50 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT
  • Housing Color: blue
  • Orientation: straight
  • Number of positions: 50
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 1000 - 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Filter Property Value
Version pin header
Colour blue
Type of locking Yes
Pin number 50 pole
Additional parts equipped
Connection solder pin
Connection plating gold-plated
Rated voltage 250 V
Contact type pin
Rated current 1 A
contact surface tin-plated
Orientation straight
Grid 2.54 mm
Number of rows 2
Logistics
Property Value
Country of origin AT
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
