3-1761608-1 | AMP

Pin header, 34 pole, pitch 2.54 mm, straight, blue, 3-1761608-1

Order No.: 36P5215
EAN: 4099889941890
MPN:
3-1761608-1
Series: AMP-LATCH

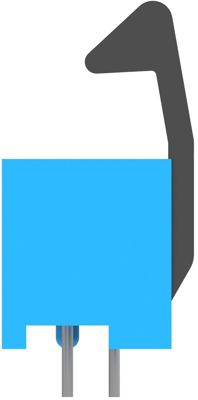

3-1761608-1 AMP PCB Connection Systems Image 1

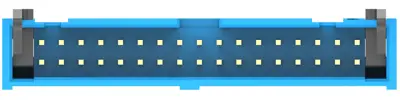

3-1761608-1 AMP PCB Connection Systems Image 2

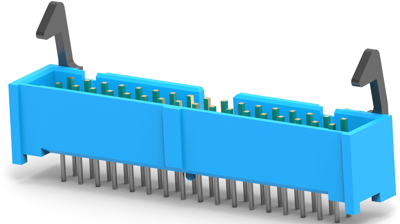

3-1761608-1 AMP PCB Connection Systems Image 3

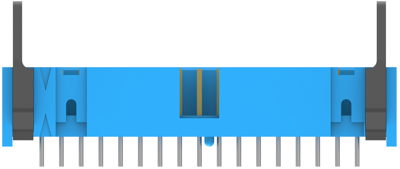

3-1761608-1 AMP PCB Connection Systems Image 4

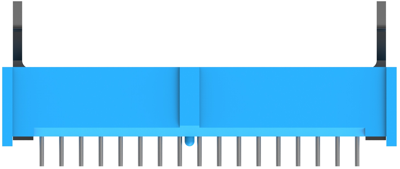

3-1761608-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
10.8052 € *
Available in 5 Days: 50 pcs. - if ordered today
Total Price:
10.81 € *
Price list
Quantity
Price per unit*
1 pcs.
10.8052 €
10 pcs.
10.0079 €
25 pcs.
9.3177 €
50 pcs.
8.4371 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-1761608-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 34 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT
  • Housing Color: blue
  • Orientation: straight
  • Number of positions: 34
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 1000 - 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Filter Property Value
Additional parts equipped
Rated voltage 250 V
Pin number 34 pole
Connection plating gold-plated
Type of locking Yes
Grid 2.54 mm
Version pin header
Connection solder pin
Contact type pin
Rated current 1 A
Orientation straight
contact surface tin-plated
Colour blue
Number of rows 2
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
