3-1761606-1 | AMP

Pin header, 34 pole, pitch 2.54 mm, straight, blue, 3-1761606-1

Order No.: 36P5210
EAN: 4099889941852
MPN:
3-1761606-1
Series: AMP-LATCH

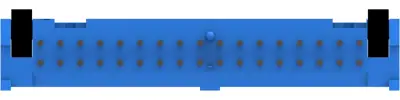

3-1761606-1 AMP PCB Connection Systems Image 1

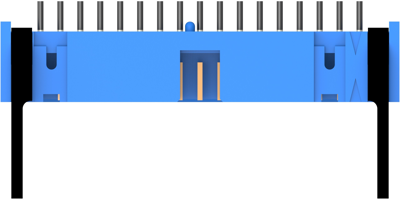

3-1761606-1 AMP PCB Connection Systems Image 2

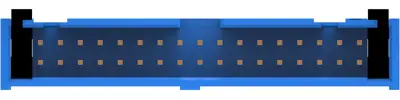

3-1761606-1 AMP PCB Connection Systems Image 3

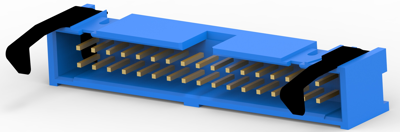

3-1761606-1 AMP PCB Connection Systems Image 4

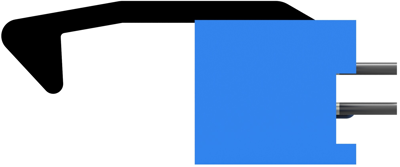

3-1761606-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
11.5073 € *
Available in 5 Days: 19,507 pcs. - if ordered today
Total Price:
11.51 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5073 €
10 pcs.
10.5791 €
50 pcs.
9.5200 €
100 pcs.
8.5680 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-1761606-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 34 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT
  • Housing Color: blue
  • Orientation: straight
  • Number of positions: 34
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 1000 - 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Filter Property Value
Colour blue
Type of locking Yes
contact surface tin-plated
Rated current 1 A
Grid 2.54 mm
Connection plating gold-plated
Pin number 34 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 250 V
Number of rows 2
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
