3-1761605-3 | AMP

Pin header, 40 pole, pitch 2.54 mm, angled, blue, 3-1761605-3

Order No.: 36P5273
EAN: 4099889942378
MPN:
3-1761605-3
Series: AMP-LATCH

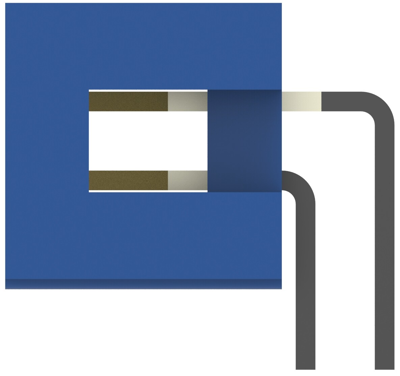

3-1761605-3 AMP PCB Connection Systems Image 1

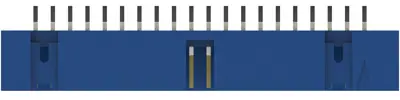

3-1761605-3 AMP PCB Connection Systems Image 2

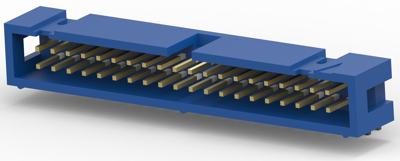

3-1761605-3 AMP PCB Connection Systems Image 3

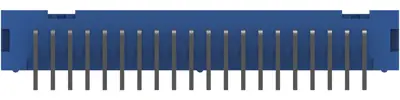

3-1761605-3 AMP PCB Connection Systems Image 4

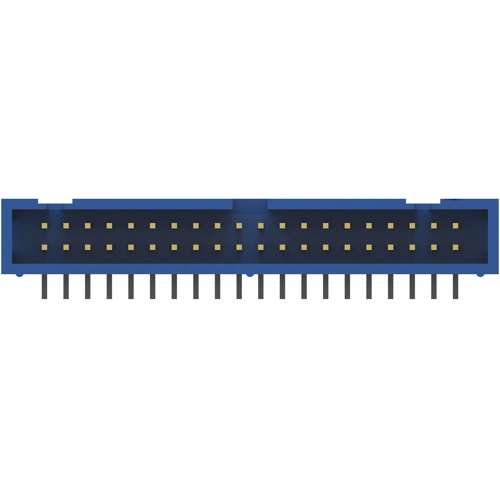

3-1761605-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
11.5549 € *
Available in 5 Days: 5,198 pcs. - if ordered today
Total Price:
11.55 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5549 €
10 pcs.
10.6267 €
50 pcs.
9.5676 €
100 pcs.
8.6037 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-1761605-3, AMP

Wire-to-Board, Printed Circuit Board, Right Angle, 40 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT
  • Housing Color: blue
  • Orientation: angled
  • Number of positions: 40
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 1000 - 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Colour blue
Type of locking Yes
contact surface gold-plated
Rated current 1 A
Grid 2.54 mm
Connection plating gold-plated
Pin number 40 pole
Version pin header
Additional parts equipped
Orientation angled
Connection solder pin
Contact type pin
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
