3-1658071-1 | AMP
Socket header, 28 pole, pitch 0.8 mm, straight, black, 3-1658071-1
Order No.: 71P7550
EAN: 4099891730093
MPN:
3-1658071-1
Unit Price (€ / pc.)
9.8651 € *
Available in 5 Days: 282 pcs. - if ordered today
Total Price:
9.87 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8651 €
5 pcs.
9.3534 €
10 pcs.
8.7465 €
25 pcs.
7.9849 €
*incl. VAT plus shipping costs
Subject to prior sale

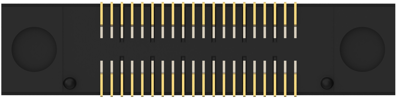

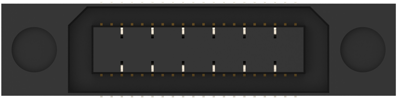

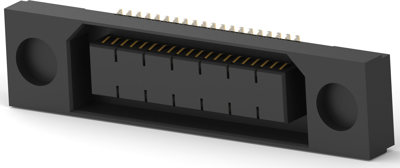

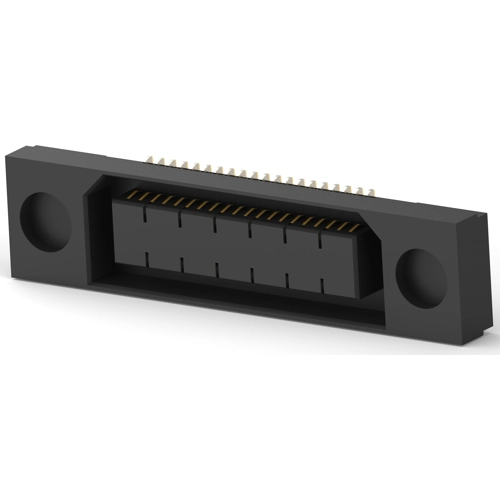

Socket header, 3-1658071-1, AMP
PCB Mount receptacle, Vertical, Board-to-Board, 28 Position, 0.8 mm Centerline, Fully shrouded, Gold flash, Surface mount, Power & Signal.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | gold-plated | |
| Grid | 0.8 mm | |
| Orientation | straight | |
| Connection | SMD | |
| Contact type | socket | |
| Rated current | 9.5 A | |
| Additional parts | equipped | |
| Version | socket header | |
| Pin number | 28 pole | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Number of rows | 2 | |
| Colour | black | |
| Rated voltage | 125 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
