3-1376387-4 | AMP

Socket header, 6 pole, pitch 5 mm, straight, yellow, 3-1376387-4

Order No.: 71P7280
EAN: 4099891729950
MPN:
3-1376387-4
Series: Power Key 5.0

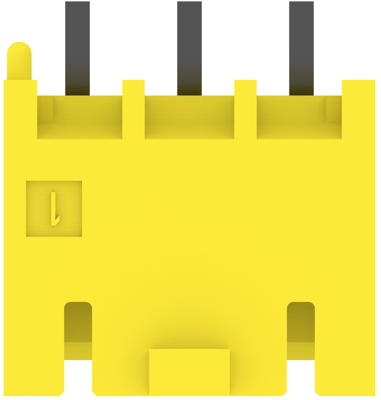

3-1376387-4 AMP PCB Connection Systems Image 1

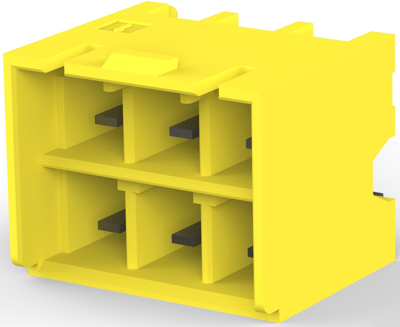

3-1376387-4 AMP PCB Connection Systems Image 2

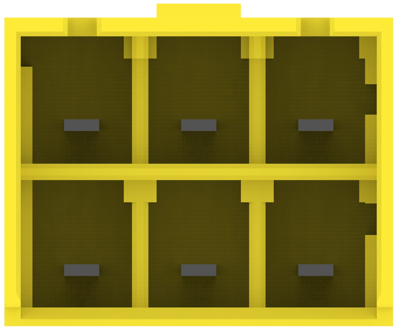

3-1376387-4 AMP PCB Connection Systems Image 3

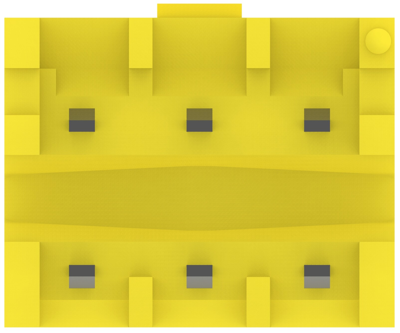

3-1376387-4 AMP PCB Connection Systems Image 4

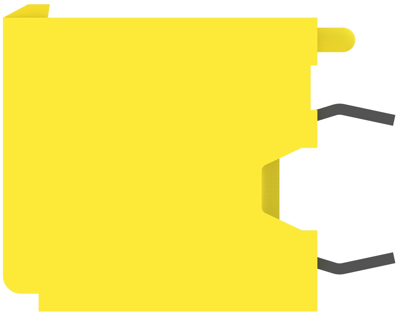

3-1376387-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0948 € *
Available in 5 Days: 2,000 pcs. - if ordered today
Total Price:
1.09 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0948 €
10 pcs.
1.0234 €
25 pcs.
0.9520 €
50 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale

Power key connector, 3-1376387-4, AMP

The 3-1376387-4 is built to optimize contact seating and proper mating to the PCB header, with design features that permit the release of bubbles created by the PCB potting process. This product uses housing lances to prevent tangling of wired contacts, and consists of plug housings for wire and compact wire-to-board PCB header assemblies.

Features

  • Locking levers are surrounded by walls, which protect levers and prevent tangling with wires
  • Power circuit connector with 5.0 mm contact centerline

Applications

  • Household appliances
  • Gas appliances
  • Power cord application
  • Control boards across various industries
Technical specifications
Filter Property Value
Connection plating tin-plated
Grid 5 mm
Orientation straight
Connection press-fit
Contact type tab
Rated current 10 A
Additional parts equipped
Version socket header
Pin number 6 pole
Type of locking Yes
contact surface tin-plated
Number of rows 2
Colour yellow
Rated voltage 300 V
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
