3-1318118-6 | AMP

Socket housing, 12 pole, pitch 2.5 mm, straight, black, 3-1318118-6

Order No.: 38P6918
EAN: 4099889973808
MPN:
3-1318118-6

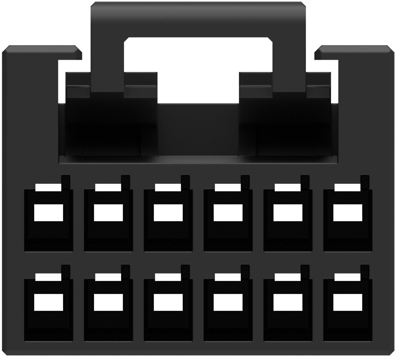

3-1318118-6 AMP PCB Connection Systems Image 1

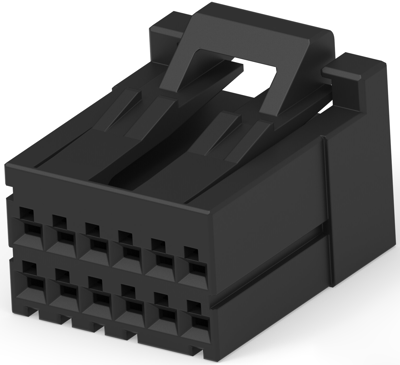

3-1318118-6 AMP PCB Connection Systems Image 2

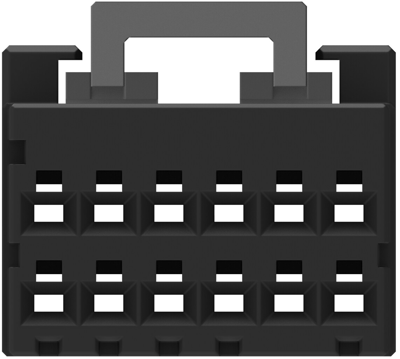

3-1318118-6 AMP PCB Connection Systems Image 3

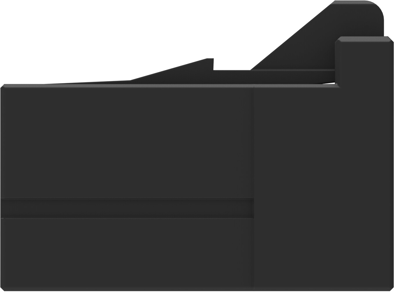

3-1318118-6 AMP PCB Connection Systems Image 4

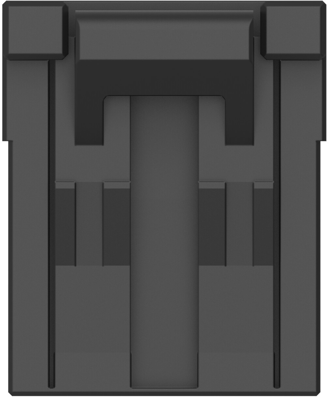

3-1318118-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.19 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
2,856.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
2400 pcs.
1.19 €

PCB Connection System, 3-1318118-6, TE Connectivity

Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 12
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2.5 mm
  • Row-to-Row Spacing: 3.75 mm [0.147 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Colour black
Type of locking Yes
Rated current 4 A
Grid 2.5 mm
Pin number 12 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 2
Logistics
Property Value
Country of origin PL
Customs tariff number 85389091
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
