3-1241965-2 | AMP

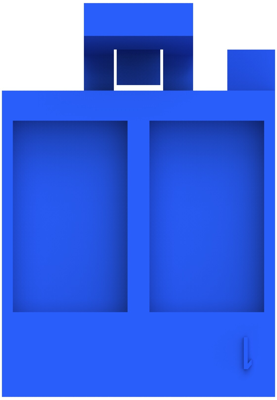

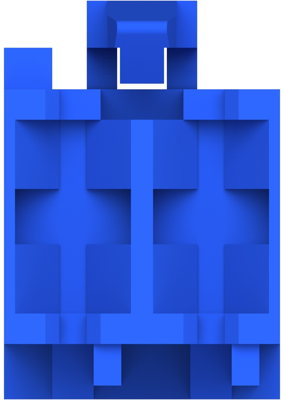

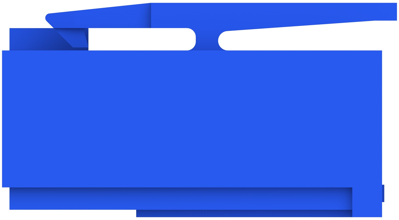

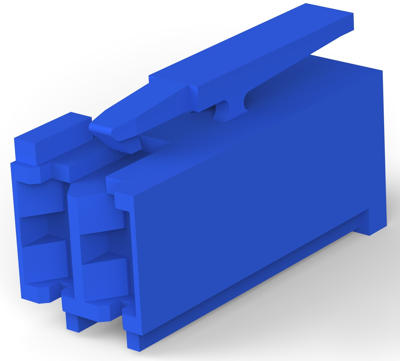

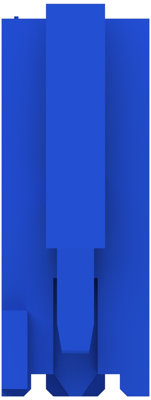

Socket housing, 2 pole, pitch 5 mm, straight, blue, 3-1241965-2
Unit Price (€ / pc.)
0.5593 € *
Available in 5 Days: 3,475 pcs. - if ordered today
PCB Connection System, 3-1241965-2, AMP
Wire-to-Board, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Housing Material: Nylon
- Housing Color: blue
- Number of positions: 2
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 5 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | blue | |
| Type of locking | Yes | |
| Rated current | 3 A | |
| Grid | 5 mm | |
| Pin number | 2 pole | |
| Version | socket housing | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
