3-1123723-8 | AMP

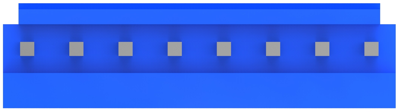

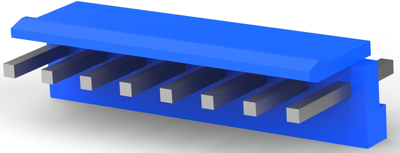

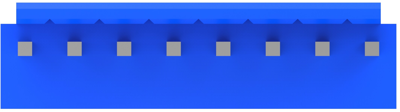

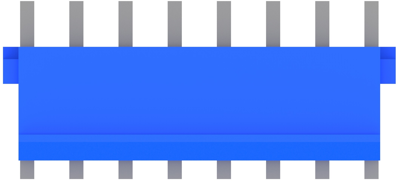

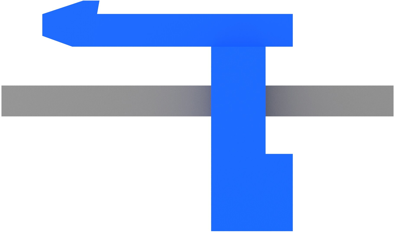

Pin header, 8 pole, pitch 3.96 mm, straight, blue, 3-1123723-8
Unit Price (€ / pc.)
0.3570 € *
Available in 5 Days: 19,896 pcs. - if ordered today
Total Price:
214.20 € *
Price list
Quantity
Price per unit*
600 pcs.
0.3570 €
1300 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 3-1123723-8, AMP
The 3-1123723-8 is a economy power connector that is widely utilized for power circuit applications that require a large current carrying capacity. This product has end to end stackable and intermateable to similar competitive products for retrofit applications.
Features
- Positive audible latch designed for easier mating and unmating
- Asymmetrical terminals prevent mis-mating
- Polarization tabs help prevent post misalignment
Applications
- Household appliances
- Industrial machinery
- Commercial & building equipment
- Vending machines & coin changers
- Lighting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.96 mm | |
| Pin number | 8 pole | |
| Colour | blue | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 8 A | |
| Version | pin header | |
| Connection | solder connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 250 V | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
