292215-6 | AMP

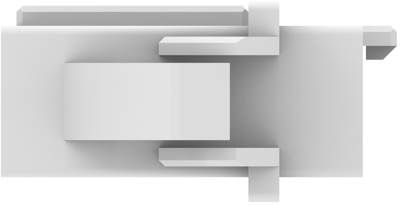

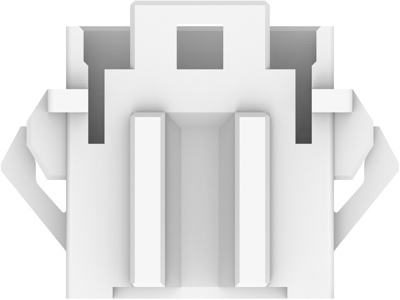

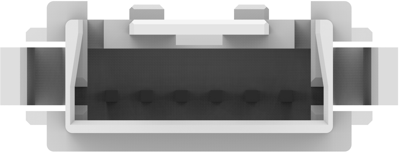

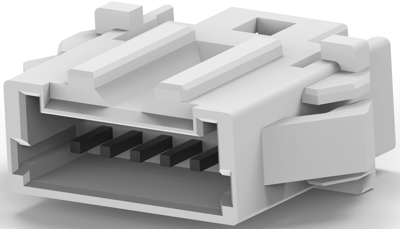

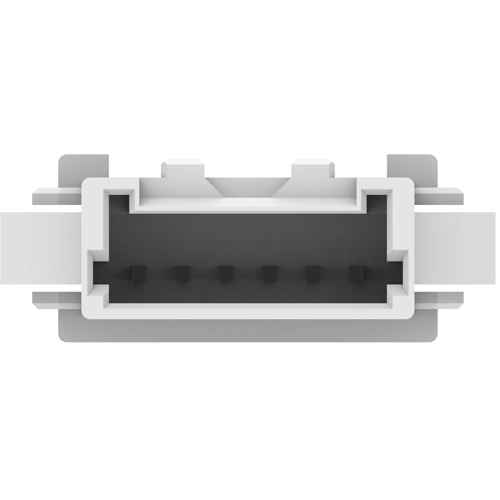

Pin header, 6 pole, pitch 1.5 mm, straight, white, 292215-6
Order No.: 36P7165
EAN: 4099889947618
MPN:
292215-6
Unit Price (€ / pc.)
0.7378 € *
Available in 5 Days: 26,982 pcs. - if ordered today
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7378 €
10 pcs.
0.6783 €
25 pcs.
0.6307 €
50 pcs.
0.5712 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 292215-6, AMP
Wire-to-Panel, 6 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Nylon 66
- Housing Color: white
- Number of positions: 6
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 2 A
- Centerline (Pitch): 1.5 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2 A | |
| contact surface | tin-plated | |
| Colour | white | |
| Additional parts | equipped | |
| Contact type | pin | |
| Grid | 1.5 mm | |
| Orientation | straight | |
| Rated voltage | 50 V | |
| Connection | solder pin | |
| Pin number | 6 pole | |
| Version | pin header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
