292206-4 | AMP

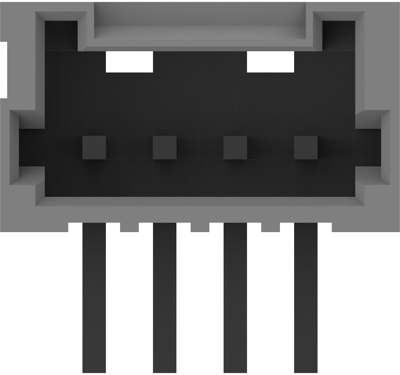

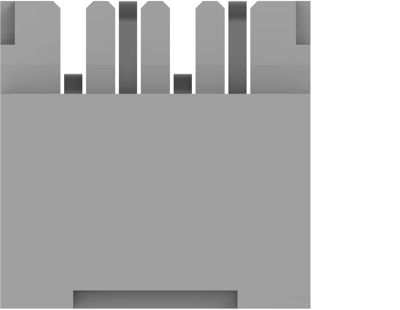

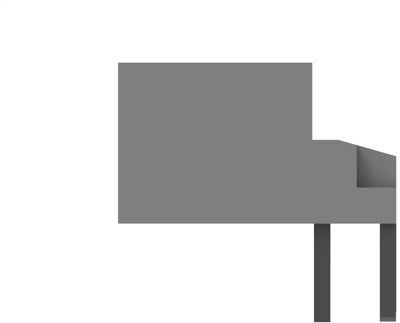

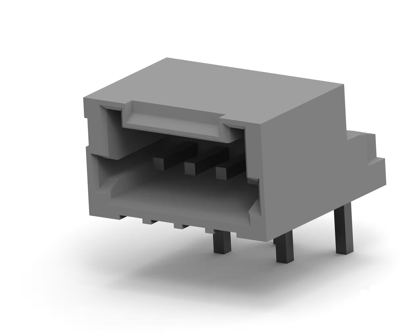

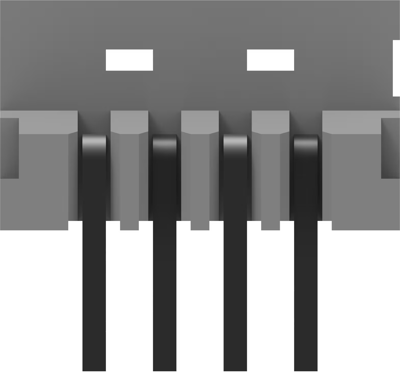

Pin header, 4 pole, pitch 1.5 mm, angled, natural, 292206-4
Order No.: 59F480
MPN:
292206-4
Unit Price (€ / pc.)
0.6664 € *
Available in 5 Days: 19,250 pcs. - if ordered today
Total Price:
3.33 € *
Price list
Quantity
Price per unit*
5 pcs.
0.6664 €
10 pcs.
0.6188 €
25 pcs.
0.5712 €
50 pcs.
0.5236 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connector, 292206-4, AMP
PCB mount header, Right angle, Wire-to-Board, 4 Positions, 1.5 mm centerline, Fully Shrouded, Tin (Sn), Through Hole-Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.5 mm | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 2 A | |
| Rated voltage | 50 V | |
| Orientation | angled | |
| Type of locking | Yes | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 4 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
