292184-1 | AMP

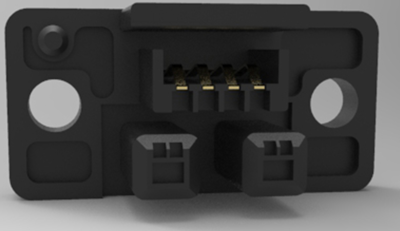

Socket header, 6 pole, pitch 2 mm, straight, black, 292184-1
Order No.: 36P9161
EAN: 4099889949483
MPN:
292184-1
Unit Price (€ / pc.)
6.6402 € *
Available in 5 Days: 6,483 pcs. - if ordered today
Total Price:
6.64 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6402 €
5 pcs.
6.2951 €
10 pcs.
5.8905 €
25 pcs.
5.3669 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 292184-1, AMP
Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Thermoplastic
- Housing Color: black
- Number of positions: 6
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Insulation Resistance: 100 MΩ
- Centerline (Pitch): 2 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 15 A | |
| Colour | black | |
| Contact type | socket | |
| Grid | 2 mm | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| Connection | crimp connection | |
| Pin number | 6 pole | |
| Version | socket header | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369001 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
