292182-8 | AMP

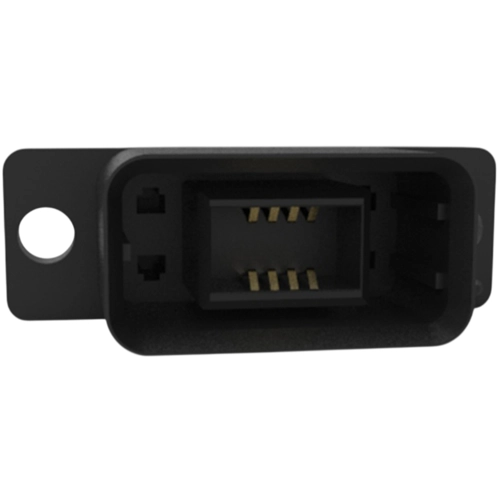

Pin header, 12 pole, pitch 2 mm, straight, black, 292182-8
Order No.: 36P9154
EAN: 4099889949445
MPN:
292182-8
Unit Price (€ / pc.)
11.0432 € *
Standard delivery time from the manufacturer is: 8 Weeks
PCB Connection System, 292182-8, AMP
Wire-to-Board, Printed Circuit Board, 12 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Base Material: Copper Alloy
- Housing Material: Thermoplastic
- Housing Color: black
- Number of positions: 12
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 15 A
- Centerline (Pitch): 2 mm
- Row-to-Row Spacing: 8.05 mm [0.317 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 15 A | |
| contact surface | gold-plated | |
| Colour | black | |
| Contact type | pin | |
| Grid | 2 mm | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| Connection | crimp connection | |
| Pin number | 12 pole | |
| Version | pin header | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
