292178-1 | AMP

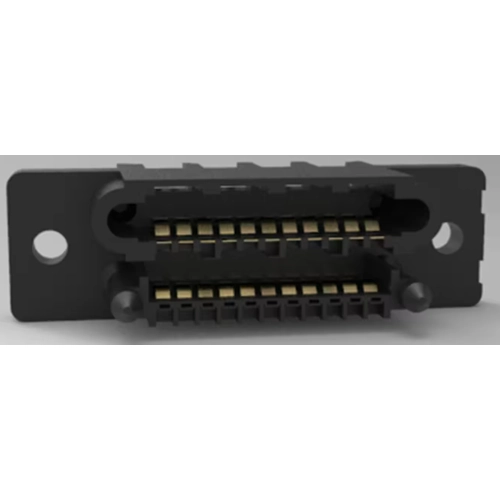

Pin header, 22 pole, pitch 2 mm, straight, black, 292178-1
Unit Price (€ / pc.)
6.8425 € *
Available in 5 Days: 8,815 pcs. - if ordered today
Low power drawer connector, 292178-1, AMP
The 292178-1 is a made of plug and receptacle housing. This housing is loaded from the back with a standard CT or Mini CT cable assembly. The loaded housing is then mated together, allowing wire-to-wire connection with higher mating cycle counts, alignment, and blind mating.
Features
- Offers up to 15A of power
- Connector design prevents mis-insertion and allows for blind mating
- Wide range of capacitor values
Applications
- Business retail equipment
- Multi-function, laser, and inkjet printers
- Consumer electronics
- Industrial controls
- Rack and panel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | gold-plated | |
| Pin number | 22 pole | |
| Rated voltage | 125 V | |
| Orientation | straight | |
| Grid | 2 mm | |
| Number of rows | 2 | |
| Connection | crimp/IDC connection | |
| Rated current | 2 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
