292175-8 | AMP

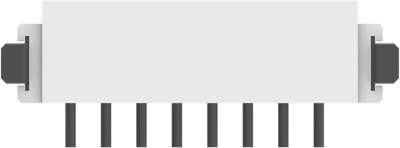

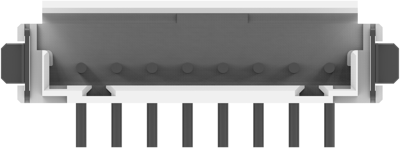

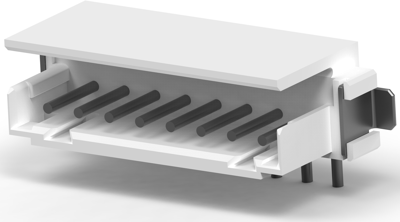

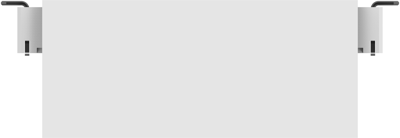

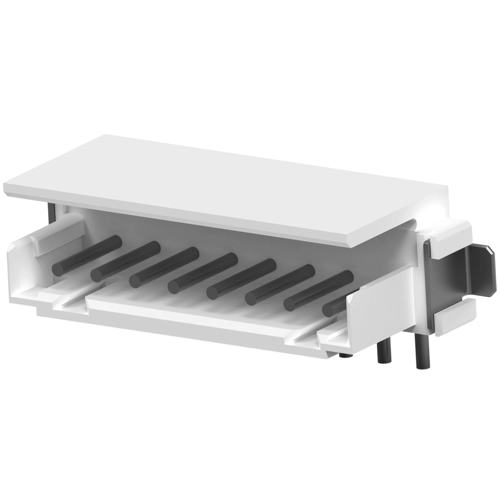

Pin header, 8 pole, pitch 2 mm, straight, natural, 292175-8
Order No.: 36P6953
EAN: 4099889946895
MPN:
292175-8
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.8207 € *
Available in 12 Days: 8,400 pcs. - if ordered today
Pin header, 292175-8, AMP
PCB Mount Header, Vertical, Wire-to-Board, 8-Positions, 2 mm Centerline, Partially Shrouded, Tin (Sn), Surface Mount, Power & Signal.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 8 pole | |
| Grid | 2 mm | |
| Connection | SMD | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 125 V | |
| Rated current | 4 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
