292173-7 | AMP

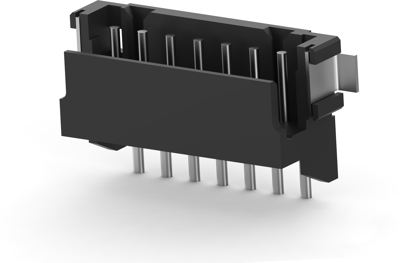

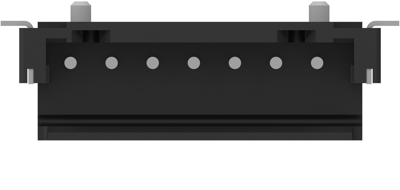

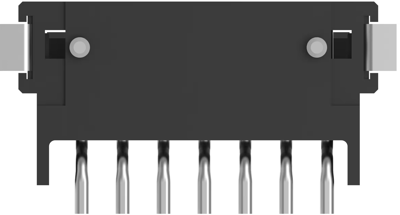

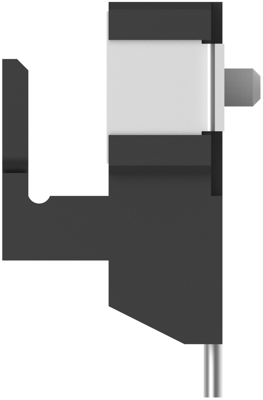

Pin header, 7 pole, pitch 2 mm, angled, black, 292173-7
Order No.: 59F478
MPN:
292173-7
Unit Price (€ / pc.)
1.2138 € *
Available in 5 Days: 2,000 pcs. - if ordered today
Total Price:
6.07 € *
Price list
Quantity
Price per unit*
5 pcs.
1.2138 €
10 pcs.
1.1186 €
25 pcs.
1.0472 €
50 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connector, 292173-7, AMP
PCB mount header, Right angle, Wire-to-Board, 7 Positions, 2 mm centerline, Partially Shrouded, Tin (Sn), Surface Mount.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Pin number | 7 pole | |
| Colour | black | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 4 A | |
| Version | pin header | |
| Connection | solder connection | |
| Number of rows | 1 | |
| Rated voltage | 125 V | |
| contact surface | tin-plated | |
| Orientation | angled | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
