292161-2 | AMP

Pin header, 2 pole, pitch 2 mm, straight, natural, 292161-2

Order No.: 36P7213
EAN: 4099889947953
MPN:
292161-2

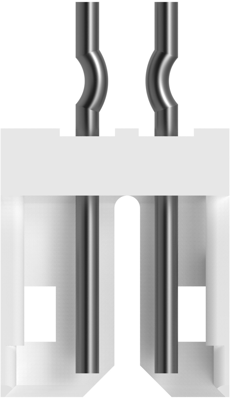

292161-2 AMP PCB Connection Systems Image 1

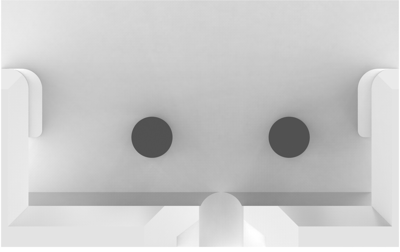

292161-2 AMP PCB Connection Systems Image 2

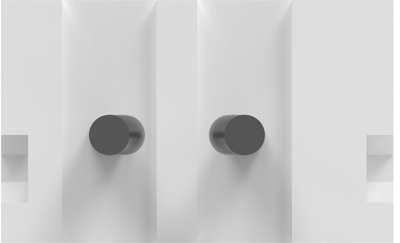

292161-2 AMP PCB Connection Systems Image 3

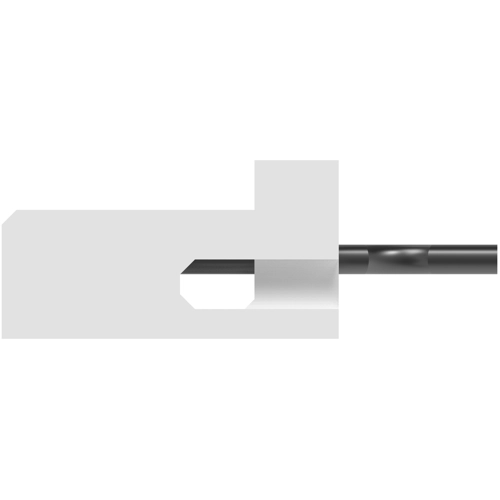

292161-2 AMP PCB Connection Systems Image 4

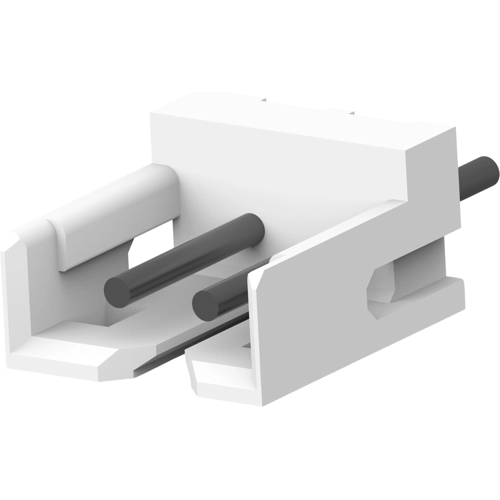

292161-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3213 € *
Available in 5 Days: 137,259 pcs. - if ordered today
Total Price:
0.64 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3213 €
50 pcs.
0.2820 €
100 pcs.
0.2475 €
500 pcs.
0.2106 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 292161-2, AMP

Wire-to-Board, Printed Circuit Board, Partially Shrouded, Vertical, 2 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Nylon 66
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -40 – 221 °C [-40 – 105 °F]
  • Rated current: 4 A
  • Centerline (Pitch): 2 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Type of locking Yes
contact surface tin-plated
Rated current 4 A
Grid 2 mm
Connection plating tin-plated
Pin number 2 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 125 V
Number of rows 1
Logistics
Country of origin US
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
