292156-4 | AMP

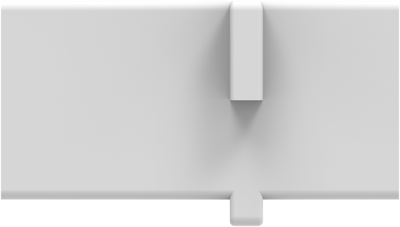

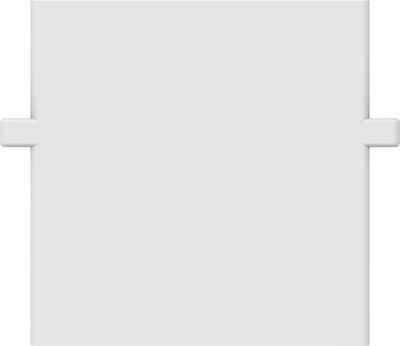

Pin header, 3 pole, pitch 2 mm, straight, white, 292156-4
Order No.: 36P7184
EAN: 4099889947731
MPN:
292156-4
Unit Price (€ / pc.)
0.5117 € *
Standard delivery time from the manufacturer is: 9 Weeks
PCB Connection System, 292156-4, AMP
Wire-to-Board, Wire-to-Wire, Wire-to-Board Connector Assemblies & Housings, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Nylon 66
- Housing Color: white
- Number of positions: 3
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 2 A
- Centerline (Pitch): 2 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2 A | |
| Colour | white | |
| Additional parts | equipped | |
| Contact type | pin | |
| Grid | 2 mm | |
| Orientation | straight | |
| Rated voltage | 125 V | |
| Connection | solder pin | |
| Pin number | 3 pole | |
| Version | pin header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Substance description | Melamine |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
