281839-8 | AMP

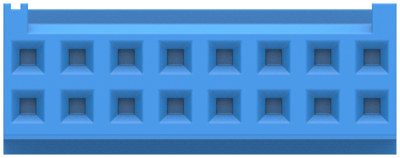

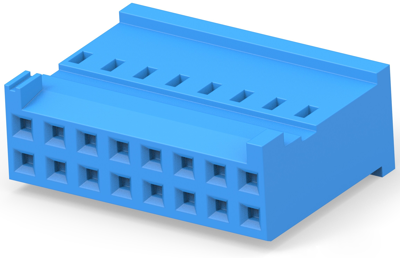

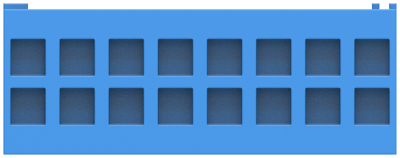

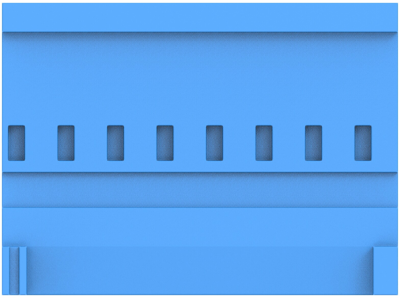

Socket housing, 16 pole, pitch 2.54 mm, straight, blue, 281839-8
Unit Price (€ / pc.)
0.4403 € *
Standard delivery time from the manufacturer is: 34 Weeks
PCB Connection System, 281839-8, AMP
Wire-to-Board, Wire & Cable, 16 Position
Technical Data
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: PBT GF
- Housing Color: blue
- Number of positions: 16
- Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 3 A | |
| Version | socket housing | |
| Number of rows | 2 | |
| Orientation | straight | |
| Additional parts | unequipped | |
| Pin number | 16 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes | |
| Contact type | socket | |
| Colour | blue | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
