281838-3 | AMP

Socket housing, 3 pole, pitch 2.54 mm, straight, blue, 281838-3

Order No.: 37P8348
EAN: 4099889971729
MPN:
281838-3
Series: AMPMODU

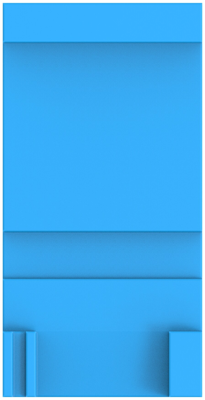

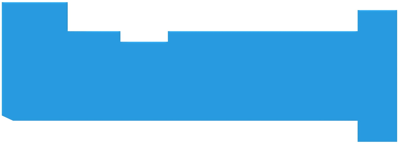

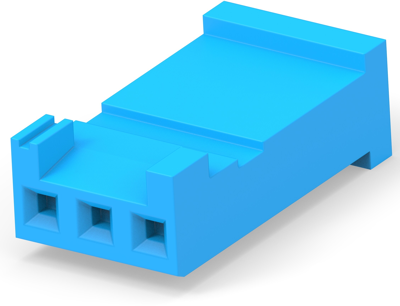

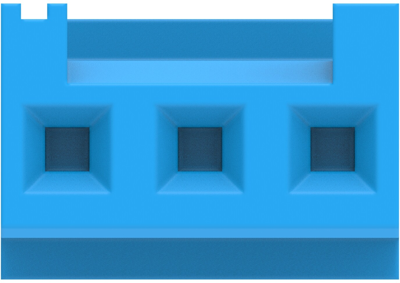

281838-3 AMP PCB Connection Systems Image 1
281838-3 AMP PCB Connection Systems Image 2
281838-3 AMP PCB Connection Systems Image 3
281838-3 AMP PCB Connection Systems Image 4
281838-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2785 € *
Available: 905 pcs.
Available in 5 Days: 37,013 pcs. - if ordered today
Total Price:
1.39 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2785 €
10 pcs.
0.2582 €
25 pcs.
0.2404 €
50 pcs.
0.2178 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 281838-3, AMP

Wire-to-Board, Wire & Cable, 3 Position

Technical Data

  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT GF
  • Housing Color: blue
  • Orientation: straight
  • Number of positions: 3
  • Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Version socket housing
Orientation straight
Pin number 3 pole
Number of rows 1
Additional parts unequipped
Grid 2.54 mm
Colour blue
Contact type socket
Connection crimp connection
Rated current 3 A
Logistics
Property Value
Customs tariff number 85472000
Country of origin AT
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
