281742-4 | AMP

Pin header, 8 pole, pitch 2.54 mm, angled, blue, 281742-4

Order No.: 37P8405
EAN: 4099889972269
MPN:
281742-4
Series: AMPMODU

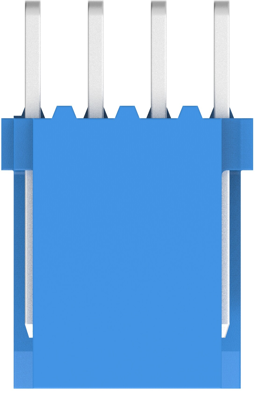

281742-4 AMP PCB Connection Systems Image 1

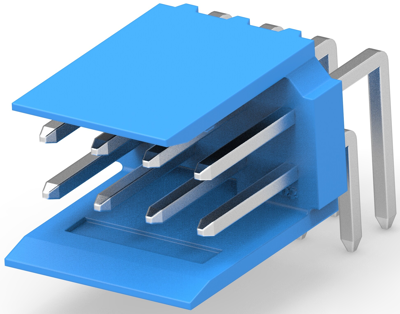

281742-4 AMP PCB Connection Systems Image 2

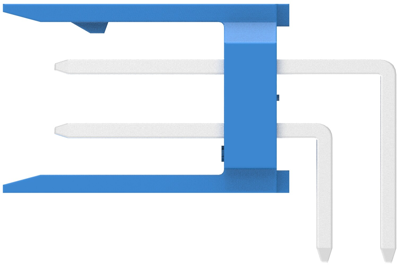

281742-4 AMP PCB Connection Systems Image 3

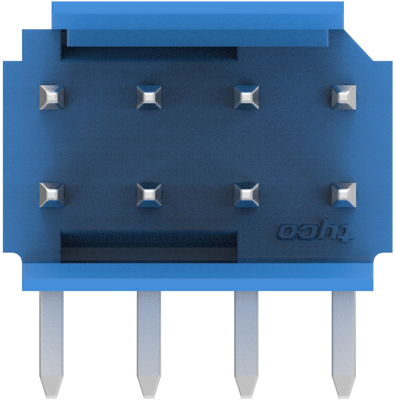

281742-4 AMP PCB Connection Systems Image 4

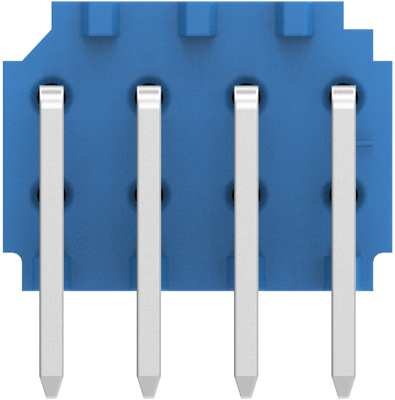

281742-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.4518 € *
Available: 14,009 pcs.
Available in 5 Days: 4,374 pcs. - if ordered today
Total Price:
7.26 € *
Price list
Quantity
Price per unit*
5 pcs.
1.4518 €
10 pcs.
1.3447 €
25 pcs.
1.2495 €
50 pcs.
1.1305 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 281742-4, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Right Angle, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: High Temperature Thermoplastic
  • Housing Color: blue
  • Orientation: angled
  • Number of positions: 8
  • Operating Temperature Range: -40 – 100 °C [-40 – 212 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Filter Property Value
Grid 2.54 mm
Breakable No
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 3 A
Orientation angled
Type of locking Yes
Additional parts equipped
Number of rows 2
Colour blue
Pin number 8 pole
Connection PCB connection
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
