281695-8 | AMP

Pin header, 8 pole, pitch 2.54 mm, straight, blue, 281695-8

Order No.: 37P8429
EAN: 4099889972474
MPN:
281695-8
Series: AMPMODU

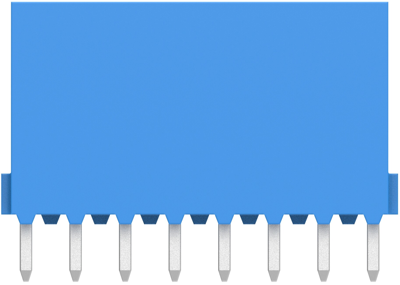

281695-8 AMP PCB Connection Systems Image 1

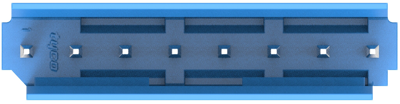

281695-8 AMP PCB Connection Systems Image 2

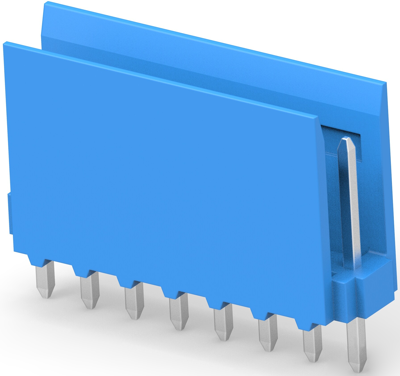

281695-8 AMP PCB Connection Systems Image 3

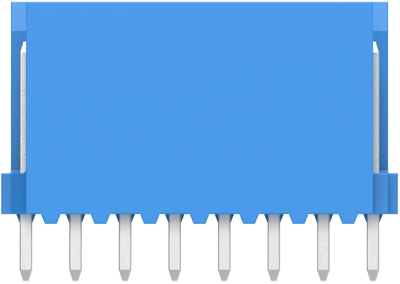

281695-8 AMP PCB Connection Systems Image 4

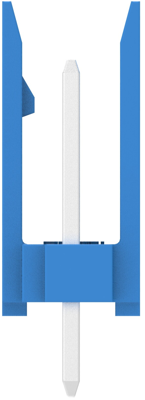

281695-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8326 € *
Available: 8 pcs.
Available in 5 Days: 3,757 pcs. - if ordered today
Total Price:
9.16 € *
Price list
Quantity
Price per unit*
5 pcs.
1.8326 €
10 pcs.
1.7017 €
25 pcs.
1.5827 €
50 pcs.
1.4280 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 281695-8, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: High Temperature Thermoplastic
  • Housing Color: blue
  • Orientation: straight
  • Number of positions: 8
  • Operating Temperature Range: -40 – 100 °C [-40 – 212 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Filter Property Value
Grid 2.54 mm
Breakable No
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 3 A
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour blue
Pin number 8 pole
Connection PCB connection
Logistics
Property Value
Country of origin JP
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
