281695-6 | AMP

Pin header, 6 pole, pitch 2.54 mm, straight, blue, 281695-6

Order No.: 37P8428
EAN: 4099889972467
MPN:
281695-6
Series: AMPMODU

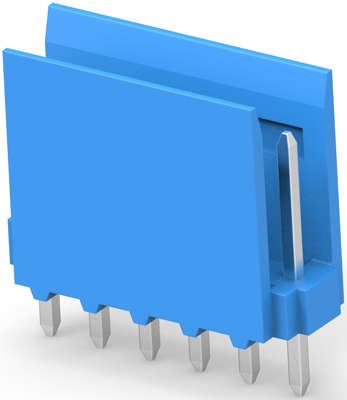

281695-6 AMP PCB Connection Systems Image 1

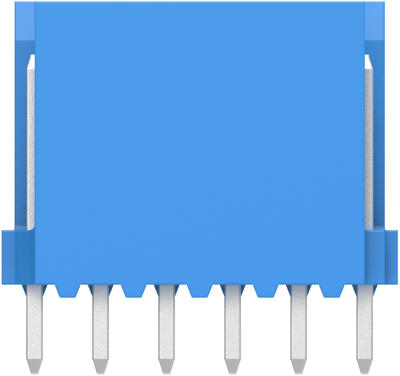

281695-6 AMP PCB Connection Systems Image 2

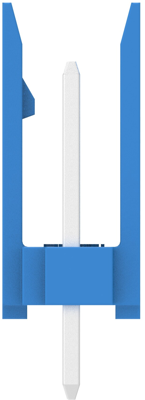

281695-6 AMP PCB Connection Systems Image 3

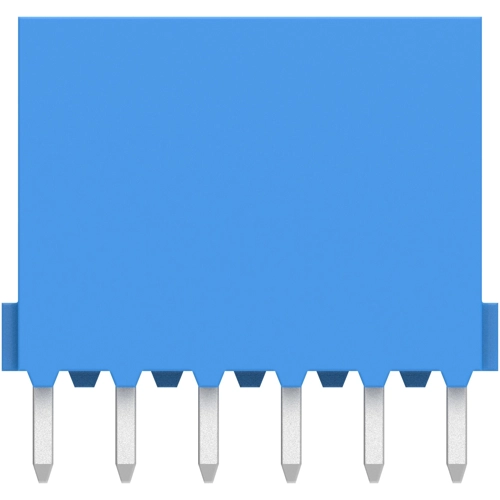

281695-6 AMP PCB Connection Systems Image 4
281695-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9282 € *
Available: 414 pcs.
Available in 5 Days: 1,125 pcs. - if ordered today
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9282 €
10 pcs.
0.8568 €
25 pcs.
0.7973 €
50 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 281695-6, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: High Temperature Thermoplastic
  • Housing Color: blue
  • Orientation: straight
  • Number of positions: 6
  • Operating Temperature Range: -40 – 100 °C [-40 – 212 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Filter Property Value
Grid 2.54 mm
Breakable No
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 3 A
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour blue
Pin number 6 pole
Connection PCB connection
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
