281695-3 | AMP

Pin header, 3 pole, pitch 2.54 mm, straight, blue, 281695-3

Order No.: 37P8425
EAN: 4099889972436
MPN:
281695-3
Series: AMPMODU

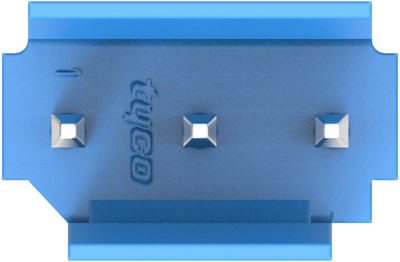

281695-3 AMP PCB Connection Systems Image 1

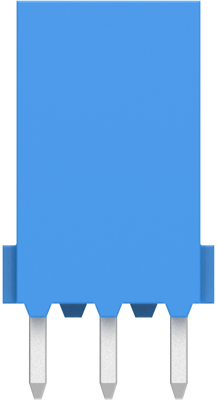

281695-3 AMP PCB Connection Systems Image 2

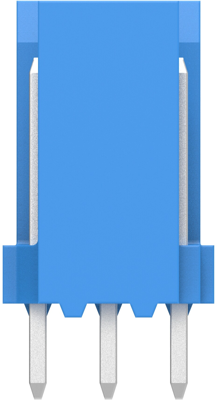

281695-3 AMP PCB Connection Systems Image 3

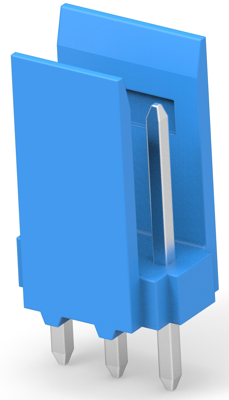

281695-3 AMP PCB Connection Systems Image 4

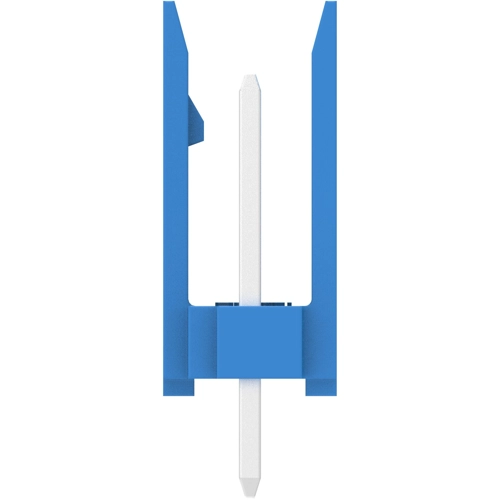

281695-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5117 € *
Available in 5 Days: 24,266 pcs. - if ordered today
Total Price:
0.51 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5117 €
100 pcs.
0.4641 €
400 pcs.
0.4165 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 281695-3, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 3 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: High Temperature Thermoplastic
  • Housing Color: blue
  • Orientation: straight
  • Number of positions: 3
  • Operating Temperature Range: -40 – 100 °C [-40 – 212 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Filter Property Value
Number of rows 1
Grid 2.54 mm
contact surface tin-plated
Connection PCB connection
Version pin header
Connection plating tin-plated
Contact type pin
Additional parts equipped
Type of locking Yes
Orientation straight
Breakable No
Rated current 3 A
Colour blue
Pin number 3 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin CN
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
