280618-1 | AMP

Pin header, 8 pole, pitch 3.96 mm, angled, green, 280618-1

Order No.: 71P6949
EAN: 4099891728915
MPN:
280618-1
Series: AMPMODU

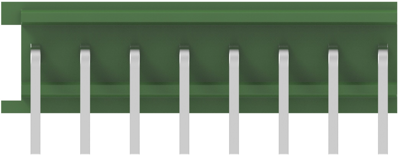

280618-1 AMP PCB Connection Systems Image 1

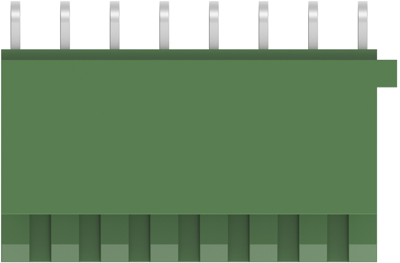

280618-1 AMP PCB Connection Systems Image 2

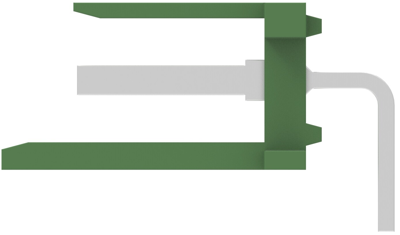

280618-1 AMP PCB Connection Systems Image 3

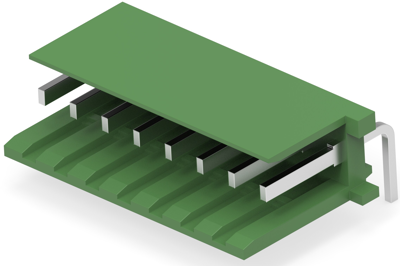

280618-1 AMP PCB Connection Systems Image 4

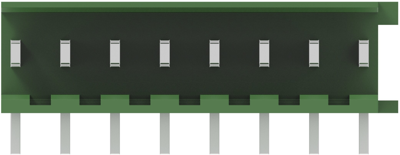

280618-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.0587 € *
Available in 5 Days: 13,876 pcs. - if ordered today
Total Price:
2.06 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0587 €
10 pcs.
1.9159 €
25 pcs.
1.7850 €
50 pcs.
1.6184 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin header, 280618-1, AMP

PCB Mount header, Right angle, Board-to-Board, 8 Position, 3.96 mm Centerline, Partially shrouded, Tin, Through Hole - Solder.

Technical specifications
Filter Property Value
Connection plating tin-plated
Grid 3.96 mm
Orientation angled
Connection solder connection
Contact type pin
Rated current 3 A
Additional parts equipped
Version pin header
Pin number 8 pole
Type of locking Yes
contact surface tin-plated
Number of rows 1
Colour green
Logistics
Property Value
Country of origin IT
Customs tariff number 85366990
Compliance
Property Value
Substance description Perfluorobutane sulfonic acid (PFBS) and its salts
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
