280594 | AMP

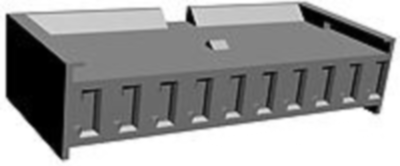

Socket header, 10 pole, pitch 3.96 mm, straight, green, 280594
Unit Price (€ / pc.)
1.0710 € *
Available: 148 pcs.
Available in 5 Days: 10,180 pcs. - if ordered today
Total Price:
1.07 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0710 €
10 pcs.
0.9996 €
25 pcs.
0.9282 €
50 pcs.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket headers, without contacts, type Modu I.
With 3.96 mm grid. For pin headers Modu I. With green polycarbonate housing, self-extinguishing to UL 94 V-0. Please order the corresponding snap-in crimp sockets separately.
Type: 0 - 0280594
Number of poles: 10 - pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Colour | green | |
| Connection | crimp connection | |
| Pin number | 10 pole | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Grid | 3.96 mm | |
| Version | socket header | |
| Number of rows | 1 | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
