280520-1 | AMP

Pin header, 12 pole, pitch 2.54 mm, straight, black, 280520-1

Order No.: 37P7641
EAN: 4099889968132
MPN:
280520-1
Series: AMPMODU

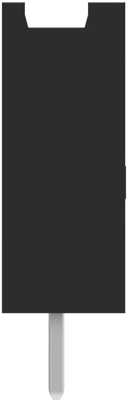

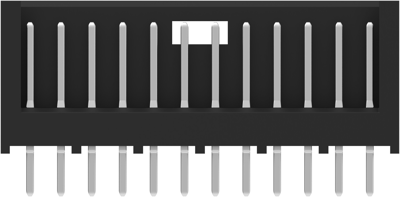

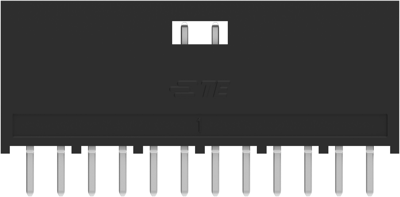

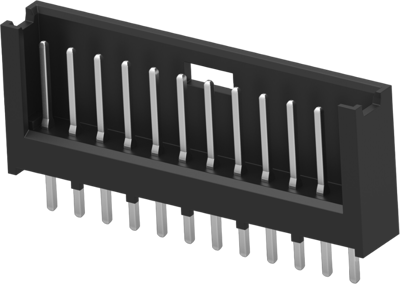

280520-1 AMP PCB Connection Systems Image 1
280520-1 AMP PCB Connection Systems Image 2
280520-1 AMP PCB Connection Systems Image 3
280520-1 AMP PCB Connection Systems Image 4
280520-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.0468 € *
Available in 5 Days: 8,784 pcs. - if ordered today
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0468 €
10 pcs.
1.8564 €
50 pcs.
1.6779 €
100 pcs.
1.5113 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 280520-1, AMP

Board-to-Board, Printed Circuit Board, Shrouded, Vertical, 12 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 12
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Version pin header
Contact type pin
Pin number 12 pole
Grid 2.54 mm
Connection PCB connection
Orientation straight
Type of locking Yes
contact surface tin-plated
Connection plating tin-plated
Rated voltage 40 V
Rated current 3 A
Additional parts equipped
Number of rows 1
Breakable No
Colour black
Logistics
Country of origin CN
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
