2314938-6 | AMP

Socket header, 6 pole, pitch 2 mm, straight, black, 2314938-6

Order No.: 59F834
MPN:
2314938-6
Series: AMPMODU

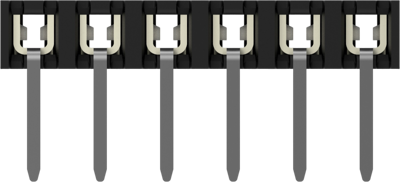

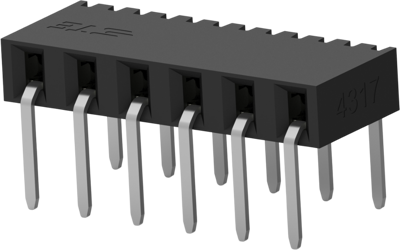

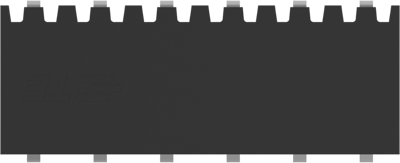

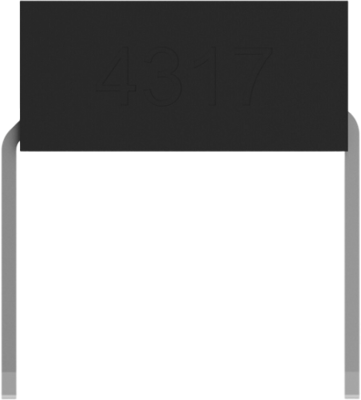

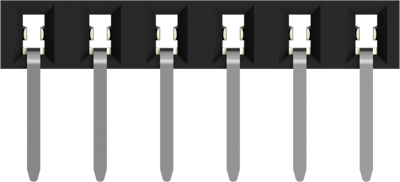

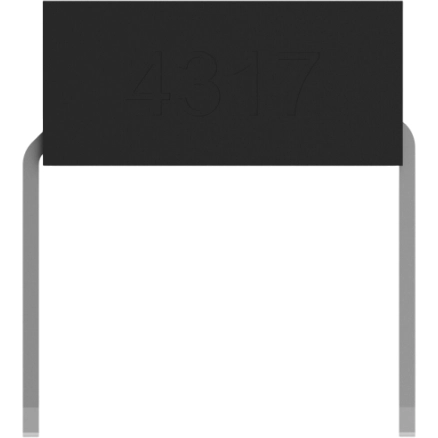

2314938-6 AMP PCB Connection Systems Image 1
2314938-6 AMP PCB Connection Systems Image 2
2314938-6 AMP PCB Connection Systems Image 3
2314938-6 AMP PCB Connection Systems Image 4
2314938-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.6898 € *
Available in 5 Days: 7,790 pcs. - if ordered today
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6898 €
10 pcs.
1.5708 €
50 pcs.
1.4399 €
100 pcs.
1.3090 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Mount Receptacle, 2314938-6, TE Connectivity

PCB Mount Receptacle, Horizontal, Board-to-Board, 6 Position, 2 mm Centerline, Gold (Au), Through Hole - Solder, Signal, Black, AMPMODU 2 mm.

Technical specifications
Connection plating tin-plated
Rated voltage 125 V
Version socket header
contact surface gold-plated
Connection solder connection
Contact type socket
Rated current 2 A
Pin number 6 pole
Colour black
Type of locking Yes
Orientation straight
Number of rows 1
Grid 2 mm
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
