2314936-4 | AMP

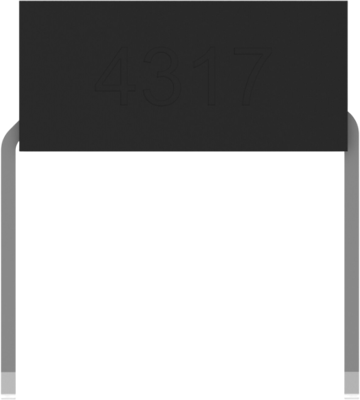

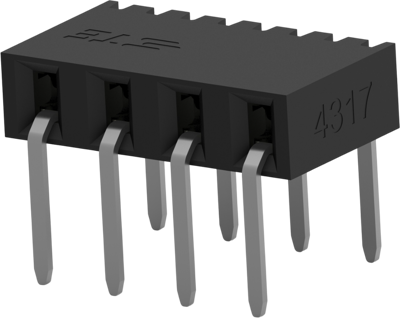

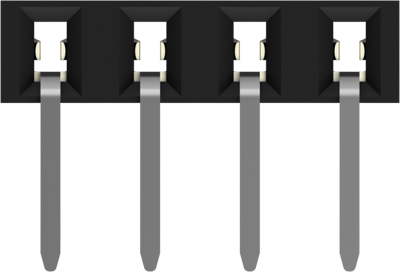

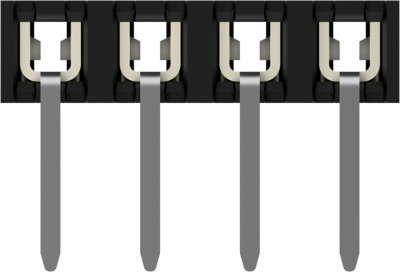

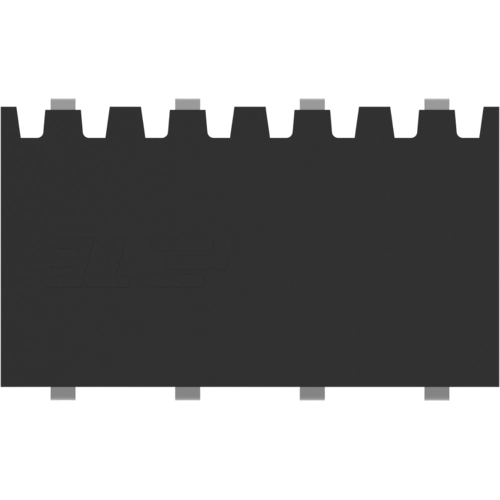

Socket header, 4 pole, pitch 2 mm, straight, black, 2314936-4
Unit Price (€ / pc.)
0.7973 € *
Available in 5 Days: 6,970 pcs. - if ordered today
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7973 €
10 pcs.
0.7497 €
25 pcs.
0.6902 €
50 pcs.
0.6307 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Mount Receptacle, 2314936-4, TE Connectivity
PCB Mount Receptacle, Horizontal, Board-to-Board, 4 Position, 2 mm Centerline, Gold Flash, Through Hole - Solder, Signal, AMPMODU 2 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2 A | |
| contact surface | gold-plated | |
| Colour | black | |
| Contact type | socket | |
| Connection plating | tin-plated | |
| Grid | 2 mm | |
| Orientation | straight | |
| Rated voltage | 125 V | |
| Connection | solder connection | |
| Pin number | 4 pole | |
| Version | socket header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
