2314822-6 | AMP

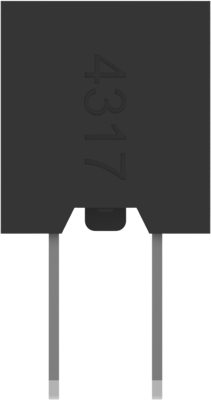

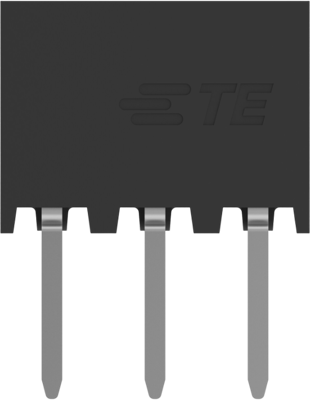

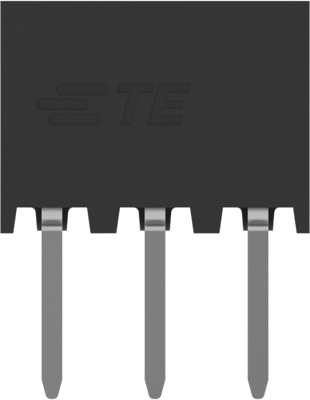

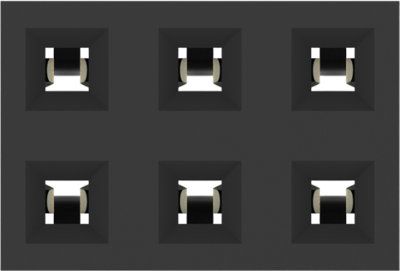

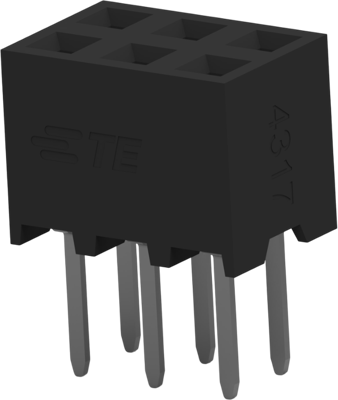

Socket header, 6 pole, pitch 2 mm, straight, black, 2314822-6
Unit Price (€ / pc.)
0.9639 € *
Standard delivery time from the manufacturer is: 21 Weeks
PCB Mount Receptacle, 2314822-6, TE Connectivity
PCB Mount Receptacle, Vertical, Board-to-Board, 6 Position, 2 mm Centerline, Gold (Au), Through Hole - Solder, Signal, Black, AMPMODU 2 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Contact type | socket | |
| Connection plating | tin-plated | |
| contact surface | gold-plated | |
| Version | socket header | |
| Rated current | 2 A | |
| Rated voltage | 125 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Number of rows | 2 | |
| Colour | black | |
| Pin number | 6 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
