2307725-2 | AMP

Socket header, 2 pole, pitch 2 mm, straight, black, 2307725-2

Order No.: 59F836
MPN:
2307725-2
Series: AMPMODU

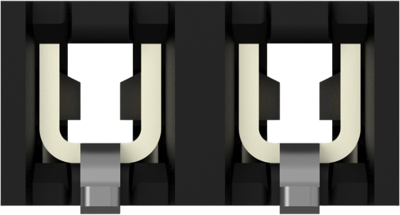

2307725-2 AMP PCB Connection Systems Image 1

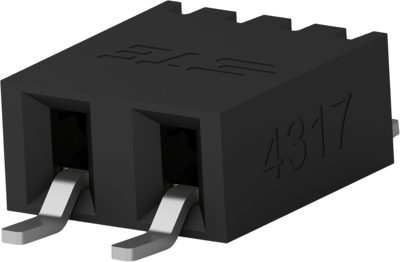

2307725-2 AMP PCB Connection Systems Image 2

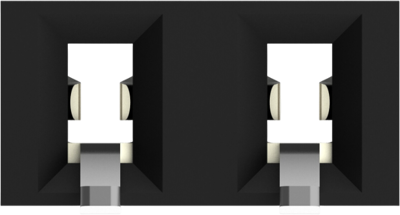

2307725-2 AMP PCB Connection Systems Image 3

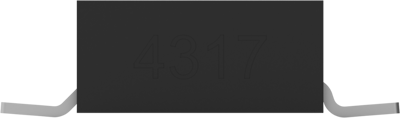

2307725-2 AMP PCB Connection Systems Image 4

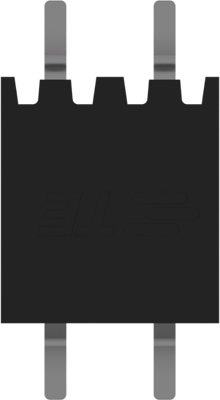

2307725-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5950 € *
Available in 5 Days: 4,000 pcs. - if ordered today
Total Price:
0.60 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5950 €
10 pcs.
0.5593 €
50 pcs.
0.5117 €
100 pcs.
0.4641 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Mount Receptacle, 2307725-2, TE Connectivity

PCB Mount Receptacle, Horizontal, Board-to-Board, 2 Position, 2 mm Centerline, Gold Flash, Surface Mount, Signal, Black, AMPMODU 2 mm.

Technical specifications
Connection plating tin-plated
Rated voltage 125 V
Version socket header
contact surface gold-plated
Connection solder connection
Contact type socket
Rated current 2 A
Pin number 2 pole
Colour black
Type of locking Yes
Orientation straight
Number of rows 1
Grid 2 mm
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
