2204441-1 | AMP

Pin header, 36 pole, pitch 2 mm, angled, black, 2204441-1

Order No.: 71P5556
EAN: 4099891726553
MPN:
2204441-1
Series: MULTI-BEAM HD

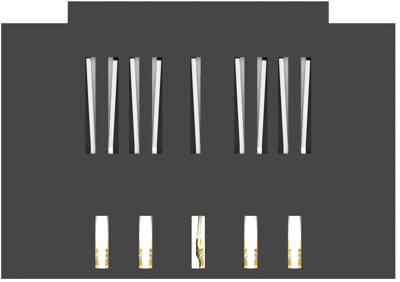

2204441-1 AMP PCB Connection Systems Image 1

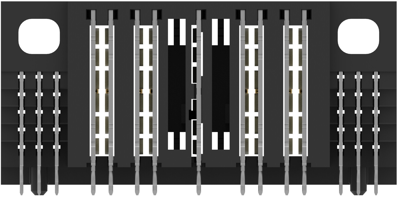

2204441-1 AMP PCB Connection Systems Image 2

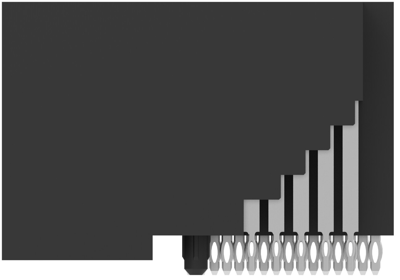

2204441-1 AMP PCB Connection Systems Image 3

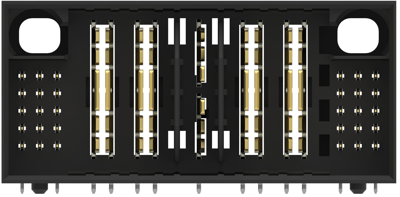

2204441-1 AMP PCB Connection Systems Image 4

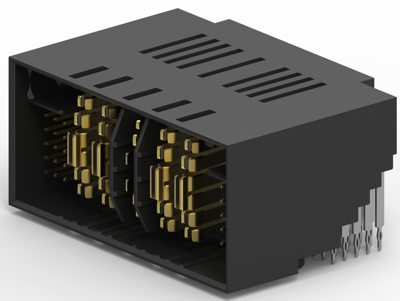

2204441-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
32.9273 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
32.93 € *
Price list
Quantity
Price per unit*
1 pcs.
32.9273 €
2 pcs.
30.8091 €
5 pcs.
28.9408 €
10 pcs.
26.9059 €
*incl. VAT plus shipping costs
Subject to prior sale

Power connector, 2204441-1, AMP

Rectangular power connector, Header, Plug, Board-to-Board, 36 Position, 2 mm/5 mm Centerline.

Technical specifications
Filter Property Value
Connection plating tin-plated
Connection press-fit
Colour black
Additional parts equipped
Pin number 36 pole
Contact type pin
Orientation angled
Rated voltage 60 V
contact surface gold-plated
Version pin header
Rated current 372 A
Number of rows 5
Grid 2 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85366930
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
