2204440-7 | AMP
Pin header, 30 pole, pitch 2 mm, angled, black, 2204440-7
Unit Price (€ / pc.)
26.2633 € *
Available in 5 Days: 219 pcs. - if ordered today
Total Price:
26.26 € *
Price list
Quantity
Price per unit*
1 pcs.
26.2633 €
5 pcs.
24.9067 €
10 pcs.
23.3002 €
25 pcs.
21.2415 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 2204440-7, AMP

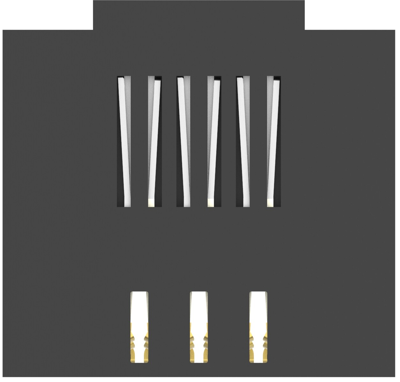

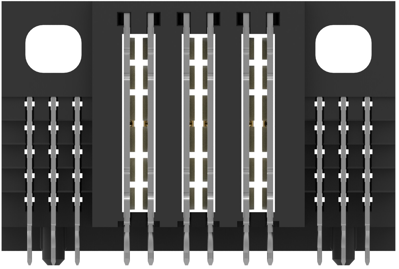

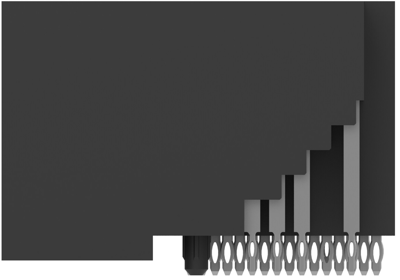

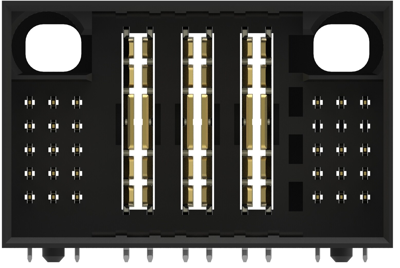

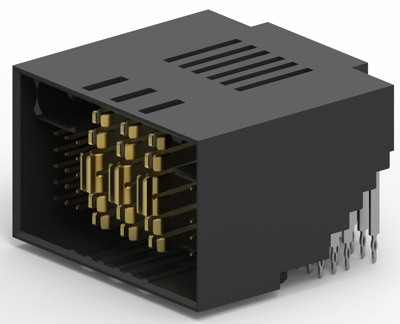

Rectangular power connector, Header, Plug, Board-to-Board, 30 Position, 2 mm/5 mm Centerline.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Pin number | 30 pole | |
| Colour | black | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 279 A | |
| Version | pin header | |
| Connection | press-fit | |
| Additional parts | equipped | |
| Number of rows | 5 | |
| Rated voltage | 60 V | |
| contact surface | gold-plated | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
