2204422-2 | AMP

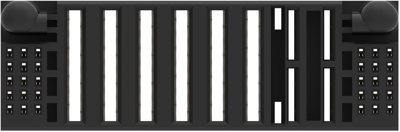

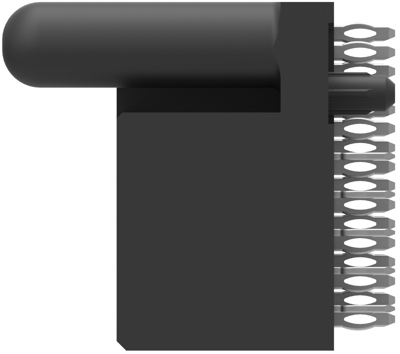

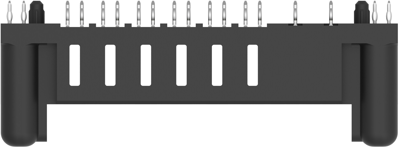

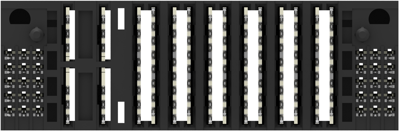

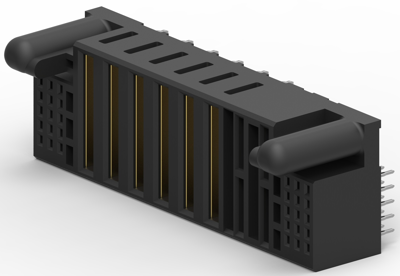

Socket header, 40 pole, pitch 2 mm, straight, black, 2204422-2
Unit Price (€ / pc.)
42.3164 € *
Available: 0 pcs.
Available in 5 Days: 179 pcs.
Leadtime: 11 Weeks **
Total Price:
42.32 € *
Price list
Quantity
Price per unit*
1 pcs.
42.3164 €
10 pcs.
38.9249 €
25 pcs.
35.4263 €
50 pcs.
32.2371 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power connector, 2204422-2, AMP
Rectangular power connector, Header, Receptacle, Board-to-Board, 40 Position, 5 mm/2 mm Centerline.
Technical specifications
| Connection | Press-fit | |
| Connection plating | verzinnt | |
| Number of rows | 5 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | vergoldet | |
| Rated voltage | 300 V | |
| Rated current | 75 A | |
| Orientation | gerade | |
| Pin number | 40-polig | |
| Grid | 2 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
