2204420-8 | AMP

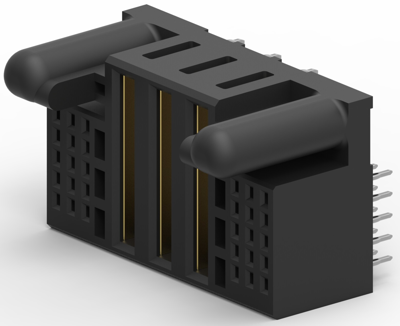

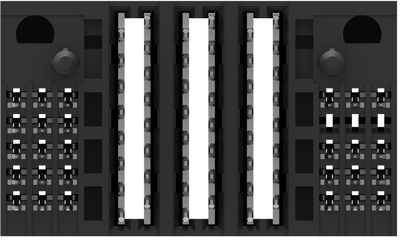

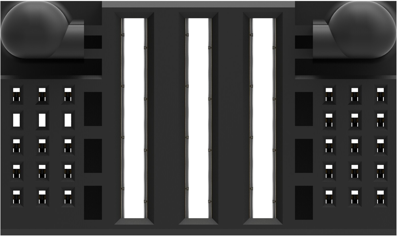

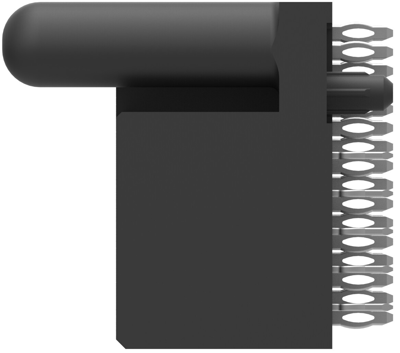

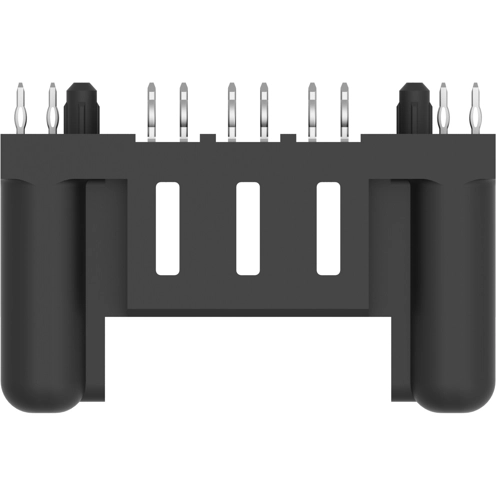

Socket header, 30 pole, pitch 2 mm, straight, black, 2204420-8
Unit Price (€ / pc.)
29.6667 € *
Available in 5 Days: 522 pcs. - if ordered today
Total Price:
29.67 € *
Price list
Quantity
Price per unit*
1 pcs.
29.6667 €
5 pcs.
28.1316 €
10 pcs.
26.3109 €
25 pcs.
23.9904 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 2204420-8, AMP
Rectangular power connector, Header, Receptacle, Board-to-Board, 30 Position, 2 mm/5 mm Centerline.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | gold-plated | |
| Rated current | 27 A | |
| Grid | 2 mm | |
| Connection plating | tin-plated | |
| Pin number | 30 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | press-fit | |
| Contact type | socket | |
| Rated voltage | 60 V | |
| Number of rows | 5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
