216602-2 | AMP

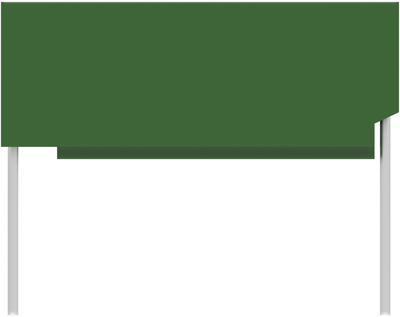

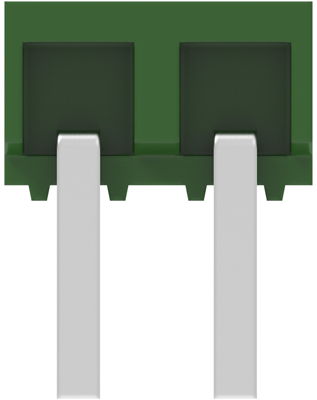

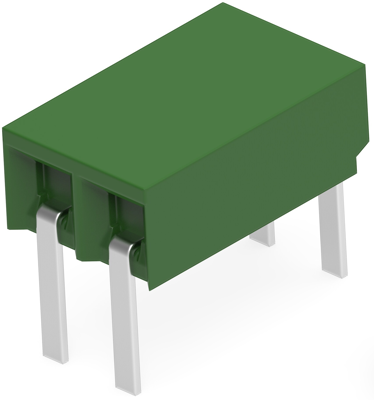

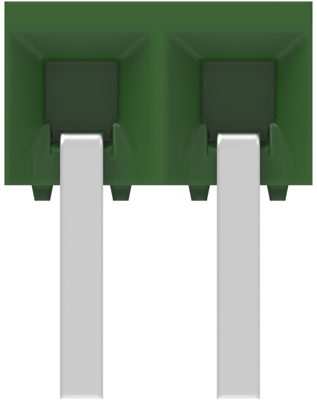

Socket header, 2 pole, pitch 2.54 mm, angled, green, 216602-2
Unit Price (€ / pc.)
1.5827 € *
Available in 5 Days: 5,186 pcs. - if ordered today
Total Price:
1.58 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5827 €
10 pcs.
1.4637 €
25 pcs.
1.3685 €
50 pcs.
1.2495 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket headers, angled, type TE Connectivity/AMP Modu II.
With 2.54 mm grid. Single-row, stackable without grid loss; Contacts: CuSn. Contact finish: in the plug-in area gold-plated on nickel primer, in the solder area tinned on nickel primer. Housing: polyester, green, self-extinguishing to UL 94 V-0. Insertion direction: sideways.
Type: 0–0216602–2, 2–pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 3 A | |
| contact surface | gold-plated | |
| Colour | green | |
| Additional parts | equipped | |
| Contact type | socket | |
| Connection plating | tin-plated | |
| Grid | 2.54 mm | |
| Orientation | angled | |
| Rated voltage | 150 V | |
| Connection | PCB connection | |
| Pin number | 2 pole | |
| Version | socket header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
