215464-8 | AMP

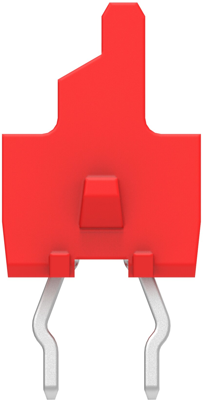

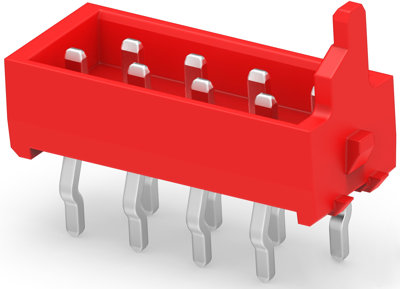

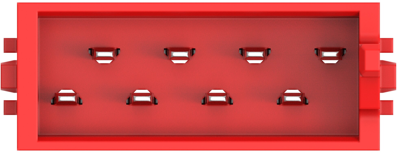

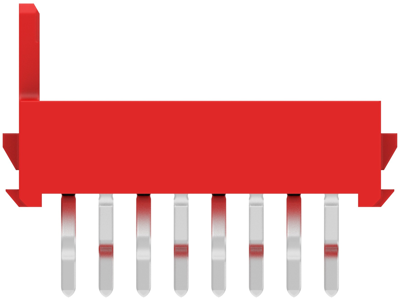

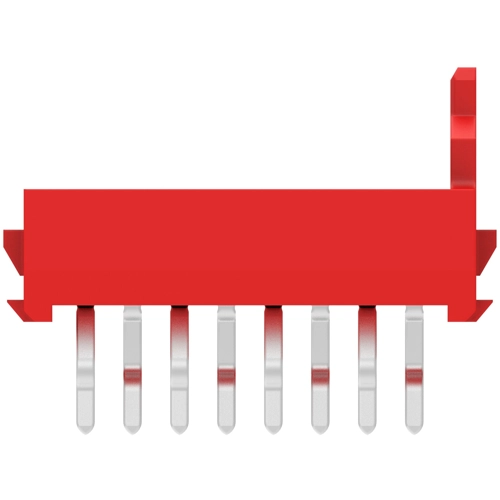

Pin header, 8 pole, pitch 1.27 mm, straight, red, 215464-8
Unit Price (€ / pc.)
0.5474 € *
Standard delivery time from the manufacturer is: 38 Weeks
Total Price:
0.55 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5474 €
10 pcs.
0.5117 €
25 pcs.
0.4760 €
50 pcs.
0.4284 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connectors, type TE Connectivity/AMP Micro-Match.
With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.
PCB male connectors, male
For PCB mounting.
Technical attributes (type, number of poles): 0-0215464-8, 8-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.27 mm | |
| Contact type | pin | |
| Additional parts | equipped | |
| Colour | red | |
| Rated current | 1 A | |
| Number of rows | 2 | |
| Connection | PCB connection | |
| Pin number | 8 pole | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | pin header | |
| Type of locking | Yes | |
| Rated voltage | 100 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
