215464-4 | AMP

Pin header, 4 pole, pitch 1.27 mm, straight, red, 215464-4

Order No.: 58F4220
EAN: 4099891002589
MPN:
215464-4
0-0215464-4
Series: Micro-MaTch

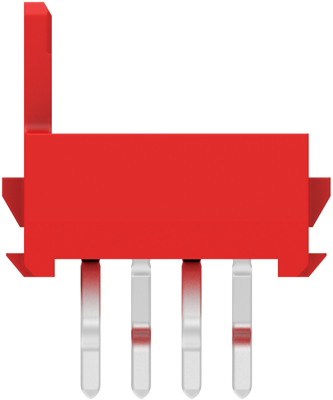

215464-4 AMP PCB Connection Systems Image 1

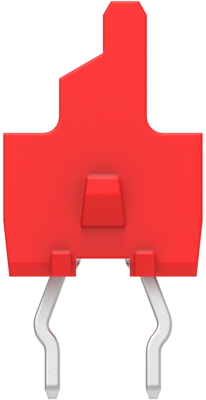

215464-4 AMP PCB Connection Systems Image 2

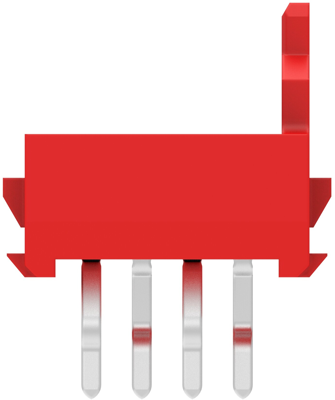

215464-4 AMP PCB Connection Systems Image 3

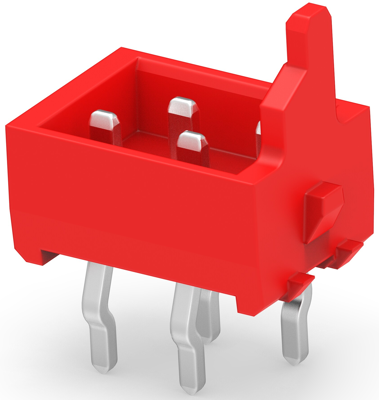

215464-4 AMP PCB Connection Systems Image 4

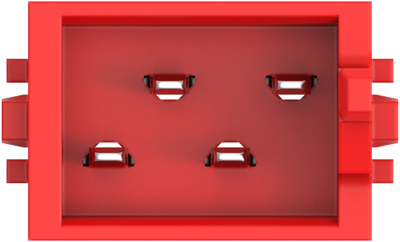

215464-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5117 € *
Available in 5 Days: 4,500 pcs. - if ordered today
Total Price:
2.56 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5117 €
10 pcs.
0.4760 €
25 pcs.
0.4403 €
50 pcs.
0.4046 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

PCB male connectors, male

For PCB mounting.

Technical attributes (type, number of poles): 0-0215464-4, 4-pole

Technical specifications
Filter Property Value
Grid 1.27 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 1 A
Rated voltage 230 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 2
Colour red
Pin number 4 pole
Connection PCB connection
Logistics
Property Value
Country of origin JP
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
