215460-6 | AMP

Socket header, 6 pole, pitch 1.27 mm, angled, red, 215460-6

Order No.: 58F4202
EAN: 4099891002510
MPN:
215460-6
0-0215460-6
Series: Micro-MaTch

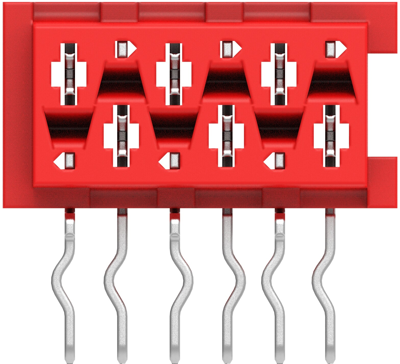

215460-6 AMP PCB Connection Systems Image 1

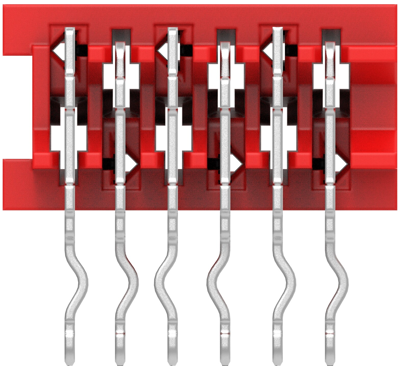

215460-6 AMP PCB Connection Systems Image 2

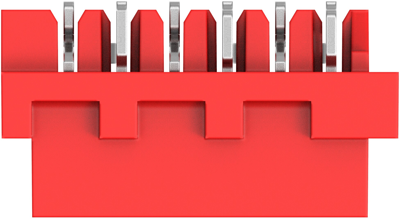

215460-6 AMP PCB Connection Systems Image 3

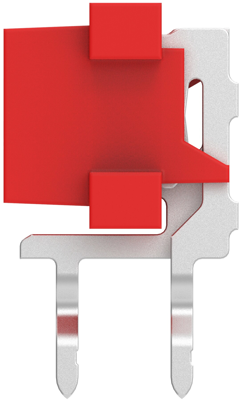

215460-6 AMP PCB Connection Systems Image 4

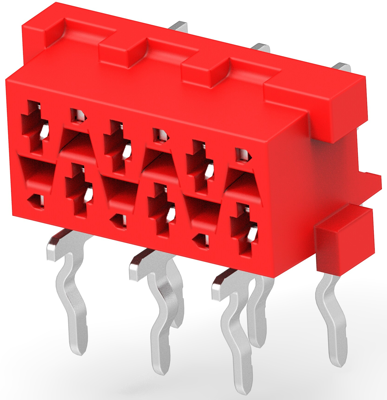

215460-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.6307 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
3,153.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.6307 €

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

PCB female connectors, angled

For PCB mounting.

Technical attributes (type, number of poles): 0-0215460-6, 6-pole

Technical specifications
Colour red
Type of locking Yes
contact surface tin-plated
Rated current 1.5 A
Grid 1.27 mm
Pin number 6 pole
Version socket header
Additional parts equipped
Orientation angled
Connection PCB connection
Contact type socket
Rated voltage 100 V
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
