215299-3 | AMP

Socket header, 3 pole, pitch 2.54 mm, straight, black, 215299-3

Order No.: 37P6110
EAN: 4099889959628
MPN:
215299-3
Series: AMPMODU

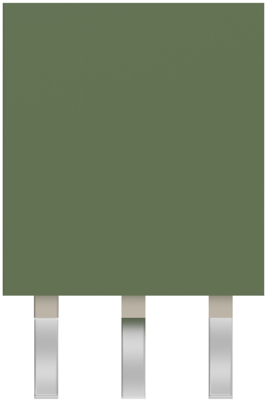

215299-3 AMP PCB Connection Systems Image 1

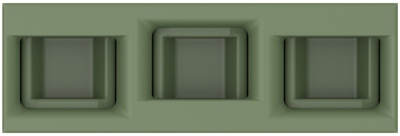

215299-3 AMP PCB Connection Systems Image 2

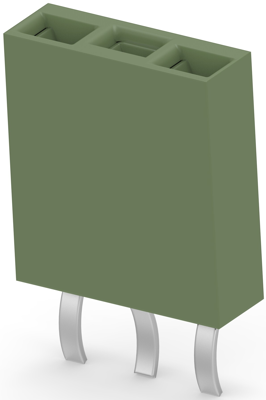

215299-3 AMP PCB Connection Systems Image 3

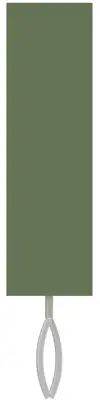

215299-3 AMP PCB Connection Systems Image 4
Image may differ
Unit Price (€ / pc.)
0.7378 € *
Available in 5 Days: 21,445 pcs. - if ordered today
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7378 €
10 pcs.
0.6545 €
50 pcs.
0.5831 €
100 pcs.
0.5117 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 215299-3, AMP

Board-to-Board, Printed Circuit Board, Vertical, 3 Position

Technical Data

  • Contact Shape & Form: Square
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Polyester - GF
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 3
  • Operating Temperature Range: -65 – 125 °C,-55 – 105 °C
  • Rated current: 3 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 3 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 3 pole
Version socket header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type socket
Rated voltage 150 V
Number of rows 1
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
