213800-2 | AMP

Pin header, 34 pole, pitch 3.81 mm, straight, black, 213800-2

Order No.: 39P1581
EAN: 4099889976779
MPN:
213800-2

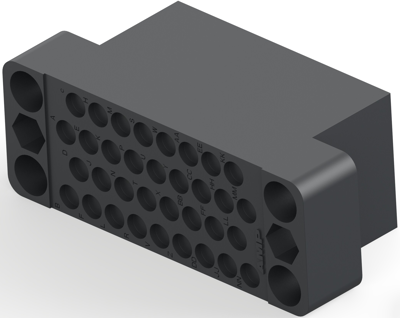

213800-2 AMP PCB Connection Systems Image 1

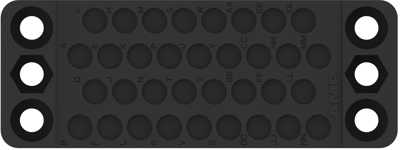

213800-2 AMP PCB Connection Systems Image 2

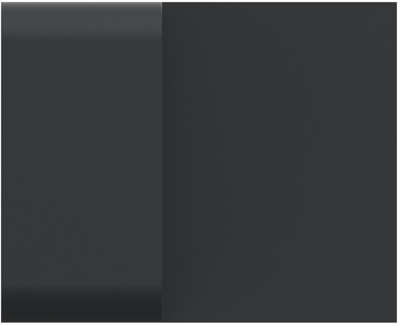

213800-2 AMP PCB Connection Systems Image 3

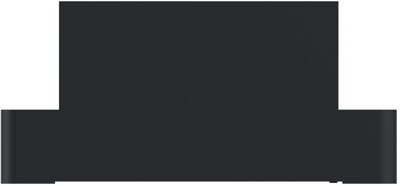

213800-2 AMP PCB Connection Systems Image 4
213800-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
6.6997 € *
Standard delivery time from the manufacturer is: 30 Weeks
Total Price:
6.70 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6997 €
10 pcs.
6.2237 €
25 pcs.
5.8072 €
50 pcs.
5.2836 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 213800-2, AMP

Cable-to-Cable,Cable-to-Panel, Wire & Cable, 34 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 34
  • Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
  • Sealable: No
Technical specifications
Filter Property Value
Version pin header
Colour black
Pin number 34 pole
Connection crimp connection
Rated voltage 250 V
Contact type pin
Rated current 13 A
Orientation straight
Grid 3.81 mm
Number of rows 4
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
