213799-1 | AMP

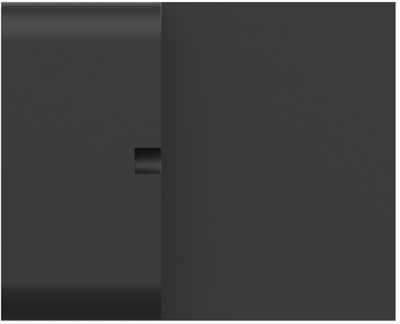

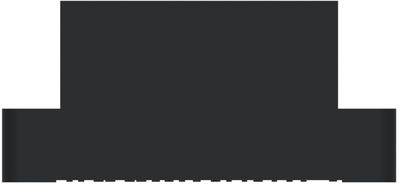

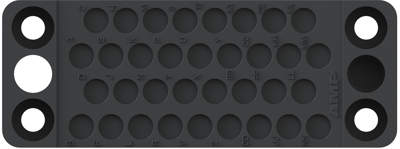

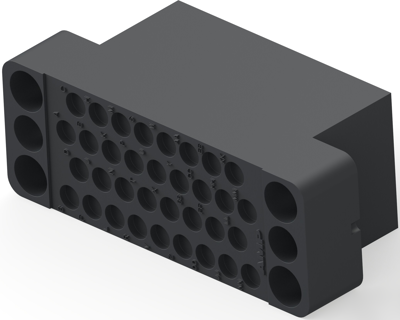

Pin header, 34 pole, pitch 3.81 mm, straight, black, 213799-1
Order No.: 39P1697
EAN: 4099889976960
MPN:
213799-1
Unit Price (€ / pc.)
5.7477 € *
Available in 5 Days: 794 pcs. - if ordered today
Total Price:
5.75 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7477 €
10 pcs.
5.3312 €
25 pcs.
4.9742 €
50 pcs.
4.5220 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 213799-1, AMP
Cable-to-Cable, Wire & Cable, 34 Position
Technical Data
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 34
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Colour | black | |
| Pin number | 34 pole | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Rated voltage | 250 V | |
| Contact type | pin | |
| Rated current | 23 A | |
| Orientation | straight | |
| Grid | 3.81 mm | |
| Number of rows | 4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
