213766-1 | AMP

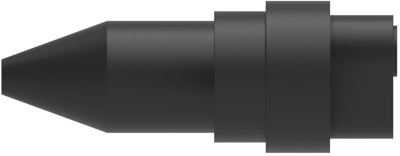

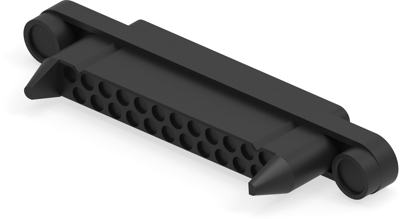

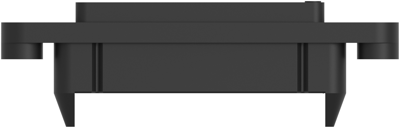

Socket header, 23 pole, pitch 6.35 mm, straight, black, 213766-1
Unit Price (€ / pc.)
9.5557 € *
Standard delivery time from the manufacturer is: 20 Weeks
PCB Connection System, 213766-1, AMP
Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Rectangular Connector Housings, 23 Position
Technical Data
- Contact Type: Female
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 23
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Centerline (Pitch): 6.35 mm
- Row-to-Row Spacing: 5.08 mm [0.2 in]
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Rated current | 13 A | |
| Grid | 6.35 mm | |
| Pin number | 23 pole | |
| Version | socket header | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket | |
| Rated voltage | 600 V | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
