213500-3 | AMP

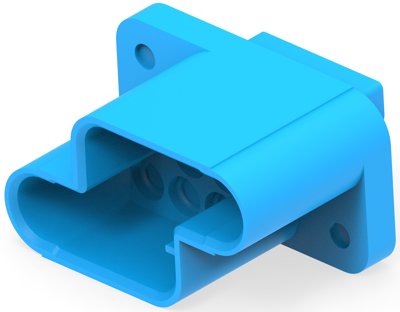

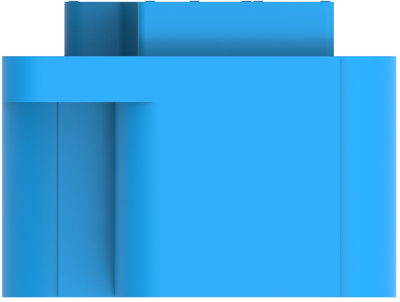

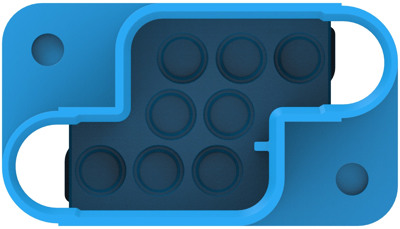

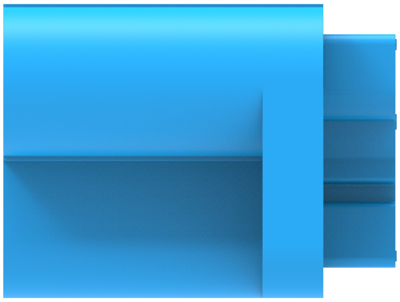

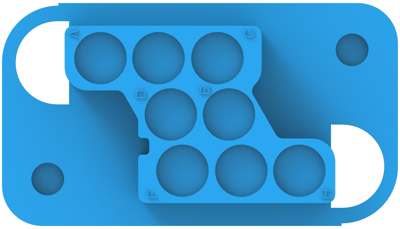

Pin header, 8 pole, pitch 8 mm, straight, blue, 213500-3
Unit Price (€ / pc.)
10.8409 € *
Standard delivery time from the manufacturer is: 20 Weeks
PCB Connection System, 213500-3, AMP
Wire-to-Panel, Wire-to-Wire, Rectangular Connector Housings, 8 Position
Technical Data
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: blue
- Number of positions: 8
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Centerline (Pitch): 8 mm
- Row-to-Row Spacing: 7.77 mm [0.306 in]
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Colour | blue | |
| Rated voltage | 600 V | |
| Connection | crimp connection | |
| Pin number | 8 pole | |
| Additional parts | unequipped | |
| Grid | 8 mm | |
| Version | pin header | |
| Number of rows | 3 | |
| Contact type | pin | |
| Rated current | 55 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
