213300-2 | AMP

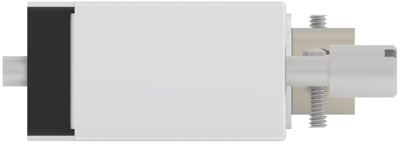

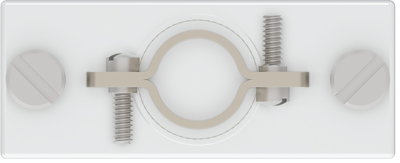

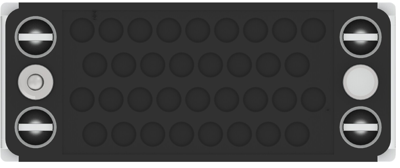

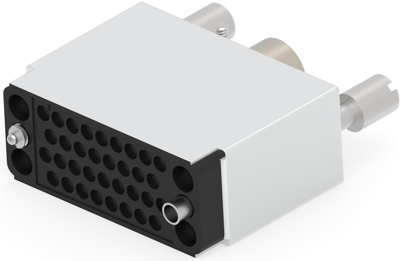

Plug housing, 34 pole, pitch 3.81 mm, straight, black, 213300-2
Unit Price (€ / pc.)
54.0260 € *
Available in 5 Days: 44 pcs. - if ordered today
Total Price:
54.03 € *
Price list
Quantity
Price per unit*
1 pcs.
54.0260 €
2 pcs.
50.5393 €
5 pcs.
47.4691 €
10 pcs.
44.1252 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 213300-2, AMP
Rectangular power connector, Housing, Plug, Cable-to-Cable, 34 Position, 3.81 mm Centerline, Wire & Cable, UL 94V-0.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Contact type | pin | |
| Pin number | 34 pole | |
| Grid | 3.81 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| Rated current | 14 A | |
| Number of rows | 4 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | not_specified |
