211759-1 | AMP

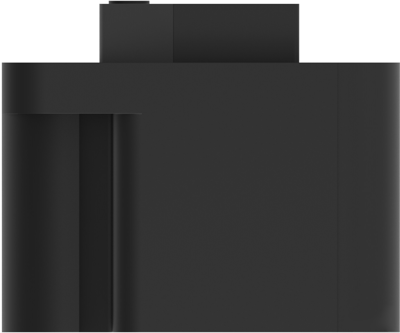

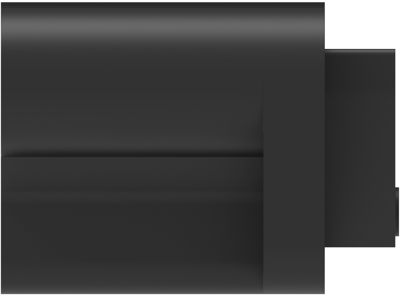

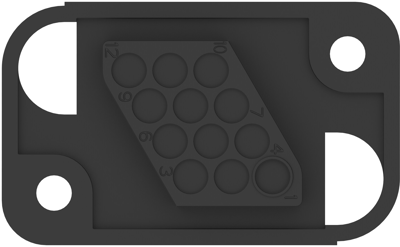

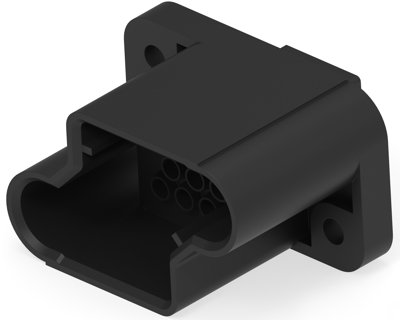

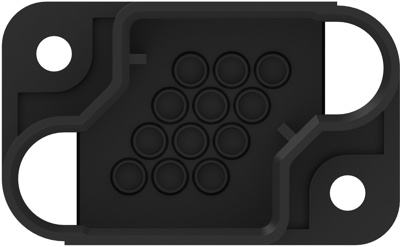

Pin header, 12 pole, pitch 4.39 mm, straight, black, 211759-1
Unit Price (€ / pc.)
6.3427 € *
Available in 5 Days: 8,385 pcs. - if ordered today
Total Price:
6.34 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3427 €
10 pcs.
5.8905 €
25 pcs.
5.4978 €
50 pcs.
4.9980 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 211759-1, AMP
Wire-to-Panel, Wire-to-Wire, Rectangular Connector Housings, 12 Position
Technical Data
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 12
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Centerline (Pitch): 8 mm
- Row-to-Row Spacing: 4.39 mm [0.173 in]
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | unequipped | |
| Orientation | straight | |
| Pin number | 12 pole | |
| Connection | crimp connection | |
| Rated current | 13 A | |
| Colour | black | |
| Grid | 4.39 mm | |
| Number of rows | 4 | |
| Rated voltage | 600 V | |
| Version | pin header | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
