208333-1 | AMP

Pin header, 62 pole, pitch 5 mm, straight, black, 208333-1

Order No.: 39P1709
EAN: 4099889977035
MPN:
208333-1

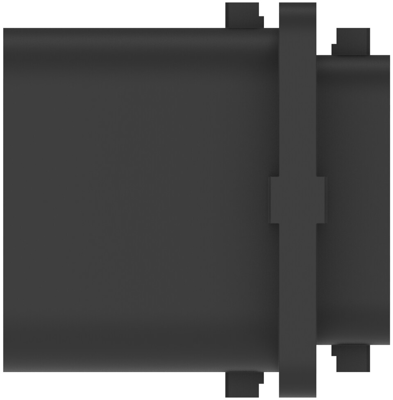

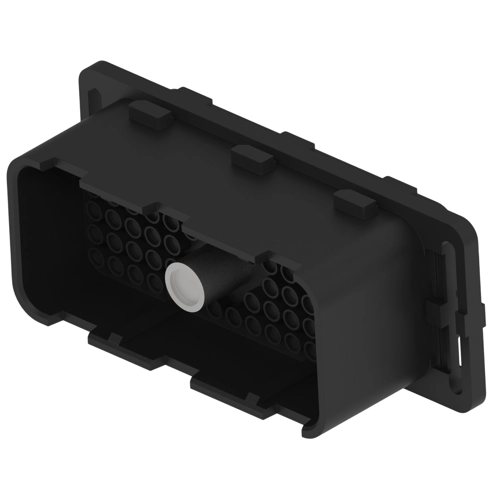

208333-1 AMP PCB Connection Systems Image 1

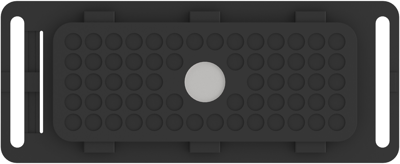

208333-1 AMP PCB Connection Systems Image 2

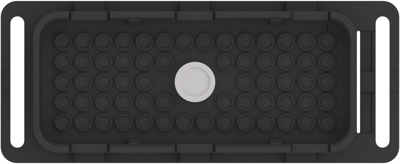

208333-1 AMP PCB Connection Systems Image 3

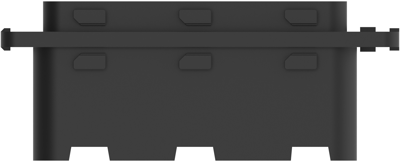

208333-1 AMP PCB Connection Systems Image 4

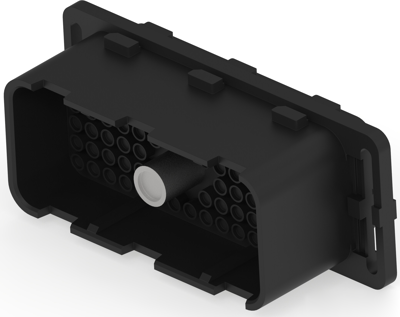

208333-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
64.6051 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
3,101.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
48 pcs.
64.6051 €

PCB Connection System, 208333-1, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 62 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: PBT
  • Housing Color: black
  • Number of positions: 62
  • Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
  • Rated current: 13 A
  • Centerline (Pitch): 5 mm
  • Row-to-Row Spacing: 5 mm [0.197 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Colour black
Type of locking Yes
Rated current 13 A
Grid 5 mm
Pin number 62 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 150 V
Number of rows 14
Logistics
Property Value
Country of origin TW
Customs tariff number 85369095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
